Silicone tube coiling ranking cutting machine ES-053

Silicone tube coiling ranking cutting machine  ES-053

【Product Description】

The silicone tube coiling ranking cutting machine   ES-053 is designed for automatic coiling and ranking silicone and rubber tubes in good roll order ,it will also automatically cut the silicone and rubber tube to length .

Youtube video

This silicone extruded gaskets tube cutting and coiling machine can not only coiling silicone tubes into roll form but rank them in good order .the ranking width is 70mm which means the height of the tube roll is 70mm . the suitable coiling tube OD is 1-9mm , the coiling roll OD ranges 50-200mm , the maximum coiling length is 25meters based on 8mm OD tubes . the coiling speed is adjustable from 30-90meters /min

This silicone extruded gaskets tube cutting and coiling machine  is specialized for coiling small tube rolls and cut to length ,the coiled tubes roll is in excellent order which saves labout to cut to length and get into roll form manually for packing .

【Technical Data】

  Product name: Silicone tube cutting and winding machine

Model: ES-053

Function: winding + ranking + cutting silicone tube to fixed length + auto count meters

Main advantages: winding and cutting silicone rubber tube in one machine

Voltage: 220V

Machine power: 500W

Working air pressure: 0.7MPA

Operating system: Ordinary touch screen

Suitable winnding tube OD : 1-9MM, can be wound ID6MM, OD9MM tube

Winding length: 1-25 meters (8mm silicone tube as an example)

Winding ranking width: 70MM

Coiling core size: 25MM (customizable)

Coiling OD range: 50-200mm

Coiling speed: 1-8 Circles/second

Coiling fixed disc: 220\280mm

Machine output:  30-90 meters/min

Machine net weight: 90KG

Machine size: L1100×W440×H430mm

【Product Advantage】

1,Auomatic coiling ranking silicone tubes  into a roll and in good order ,cut to length .

2,Automatic count meters  ,it records how many length tubes had been winded

3,High productivity and labour saving

【Product Details】

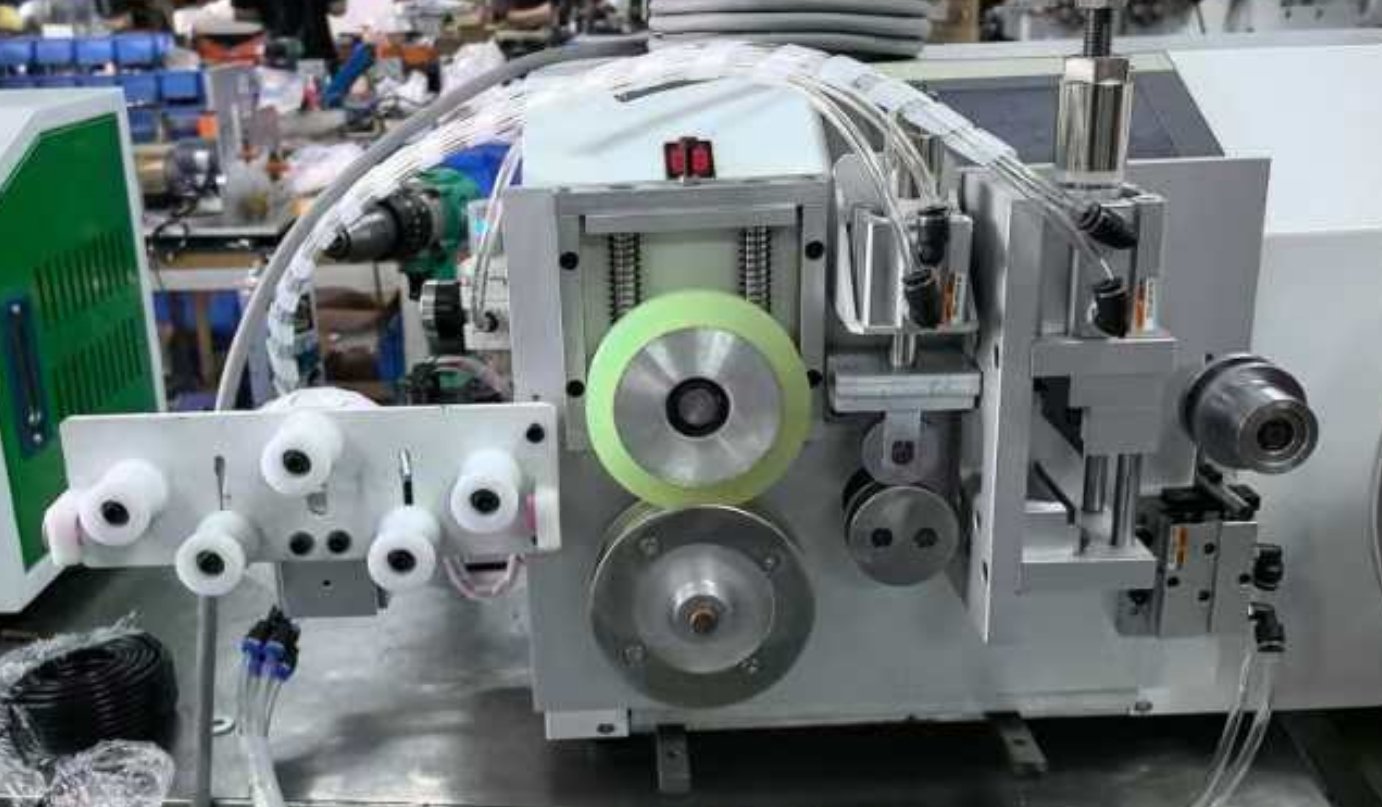

1,Count meter roller  , the Big rubber roller of this  silicone extrusion strip cutting coiling and tying machine

is for count meters ,it will record how many length of silicone and rubber tubes had been coiled .

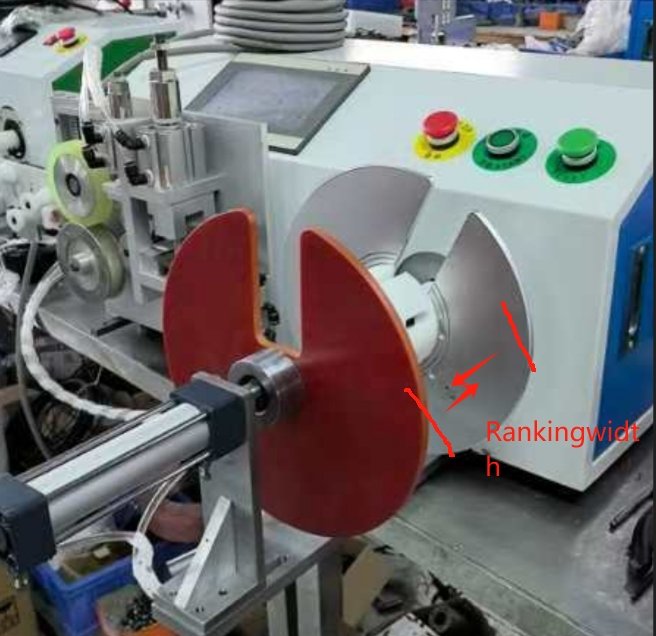

2 , Ranking unit , the ranking width is 70mm as silicone rubber tube roll height , the ranking device

will rank the silicone tubes on the ranking discs (fixtures) in good order

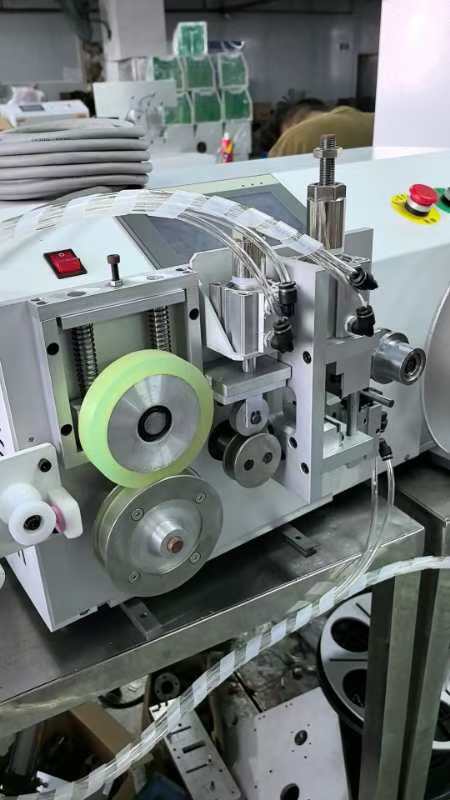

3, Feeding roller with fixtures   ,the silicone rubber tubes will be transported by the feeding

rollers and the fixtures will keep the silicone tubes in one alignment during transporting

4,Easy to use touch screen  , the silicone extruded gaskets tubes cutting and winding machine applies with touch screens

which is easy to operate ,customer just set the cutting length and coiling speed will be ok and the machine

will do the rest .

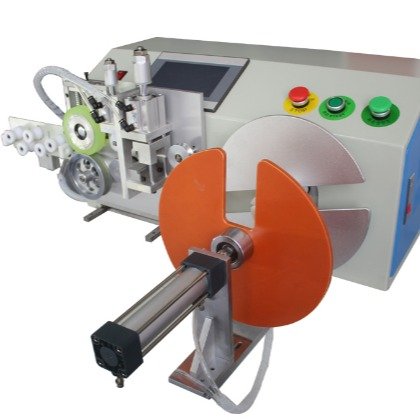

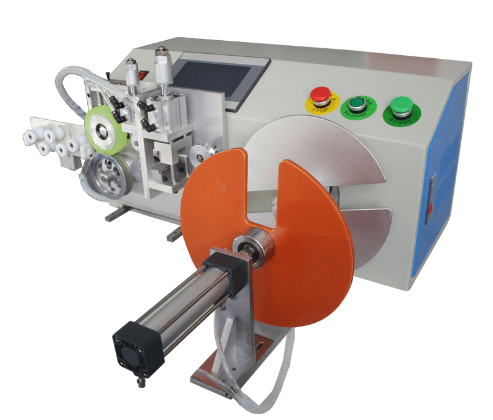

Front View

【Warranty 】

 As a silicone tube coiling ranking cutting machine   supplier , all the spare parts of the machine  will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
