Silicone o ring cords jointing machine ES-067
Silicone o ring cords jointing machine ES-067

Silicone o ring cords jointing machine ES-067

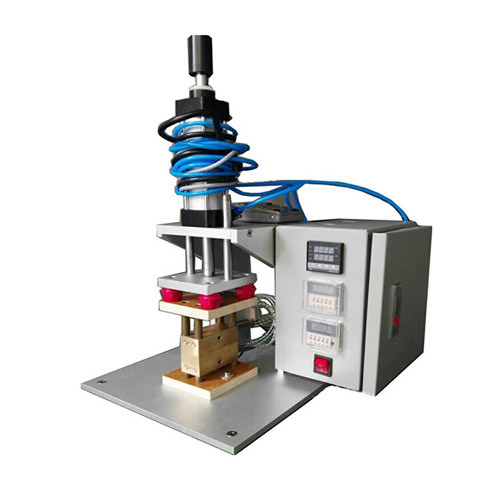

Silicone o ring cords jointing machine ES-067    The silicone o ring cords jointing machine  ES-067 specialize on the fast  joining  of cut to length extruded silicone  cords and big size silicone tubings into sm

Product Details
Brand ESMAI
Serial Number ES-067
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production 2-4 days, delivery time 5-7 days by express
Payment Method TT
Package Details 1SET/Wooden case
Ability to Supply 1000 Sets/ month

Silicone o ring cords jointing machine ES-067



The silicone o ring cords jointing machine  ES-067 specialize on the fast  joining  of cut to length extruded silicone  cords and big size silicone tubings into small o ring gaskets . normally the silicone o ring vulcanizer machine support with the high heating temperature of 175 ℃  and heat time 8-10 seconds  that the silicone adhesive needs  for vulcanization and consequently bond the silicone o ring gaskets together .  silicone o ring vulcanizer can support up to 400 ℃ and heat time  we can set between 0-60 minutes at will based on the size of the big size silicone cords and tubings .

This silicone o ring splicer have backed with a air cylinder which is of high air pressing force and  have long upper mold travel range up to 100 mm which will be good to bond big size silicone tubing/cords /gasket  permanantly .

In contrast to the old way of compression molding to manufacture silicone o ring gaskets , below you will find the youtube video how to bond silicone o ring ,seeing is believing.

 silicone o ring cords jointing machine silicone to silicone bond.jpg





【Technical Data】

Model No.: ES-067

Product Name : Silicone o ring cords jointing machine

Upper mold travel range : 0-100mm

Upper Mold size: 35*80*30mm(Mold Thickness Ajustable)

Down mold size : 35*80*35mm(Mold Thickness Adjustable)

The Fast working frequency:1000 times/hour

Mold Material : Copper

Copper Mold Temperature Range:0-500℃

Power Input: AC220V 50/60HZ

Molding Pressure : Elevated strong molding pressure by air cylinder

Net weight: 20KGS

Machine Size: L300*W300*H600mm

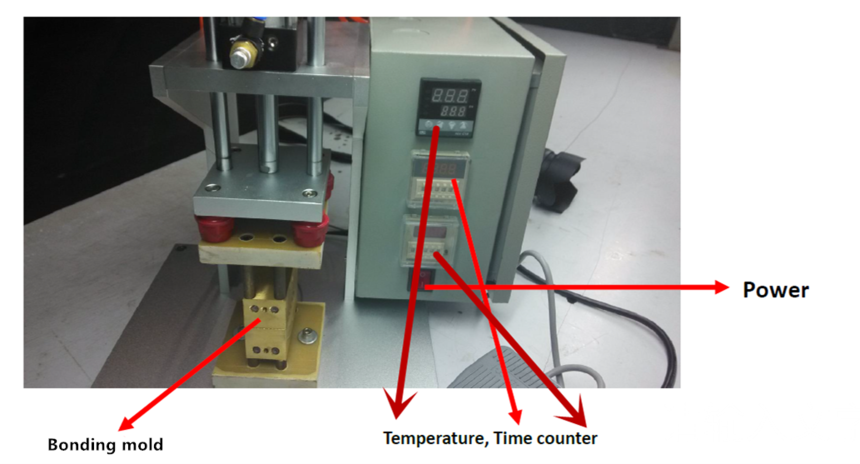

Silicone Sealing Machine_副本.png

【Product Advantage】

1, Joining silicone o ring cords and big size silicone  tubings  fastly and permanantly

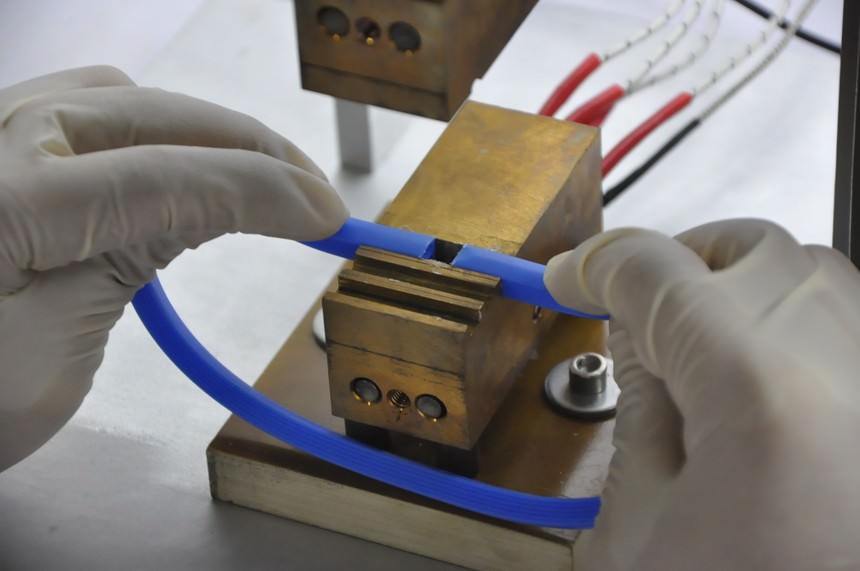

silicone o ring bonding .jpg

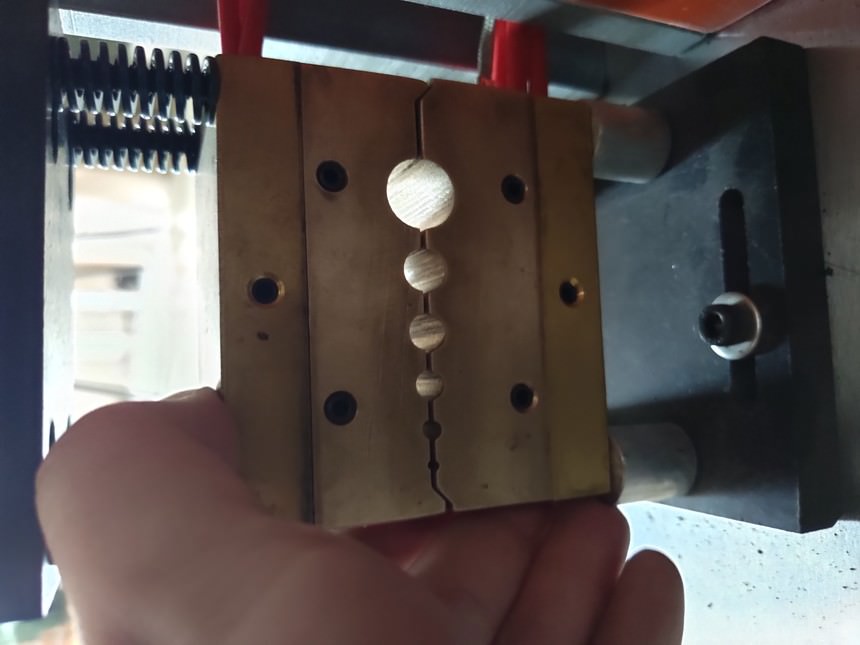

2, Mold cavity service is for free , customer can share with us their regular size silicone cords ,silicone tubings , square and rectangular silicone profiles

we can design the cavity mold for free .

mold design service

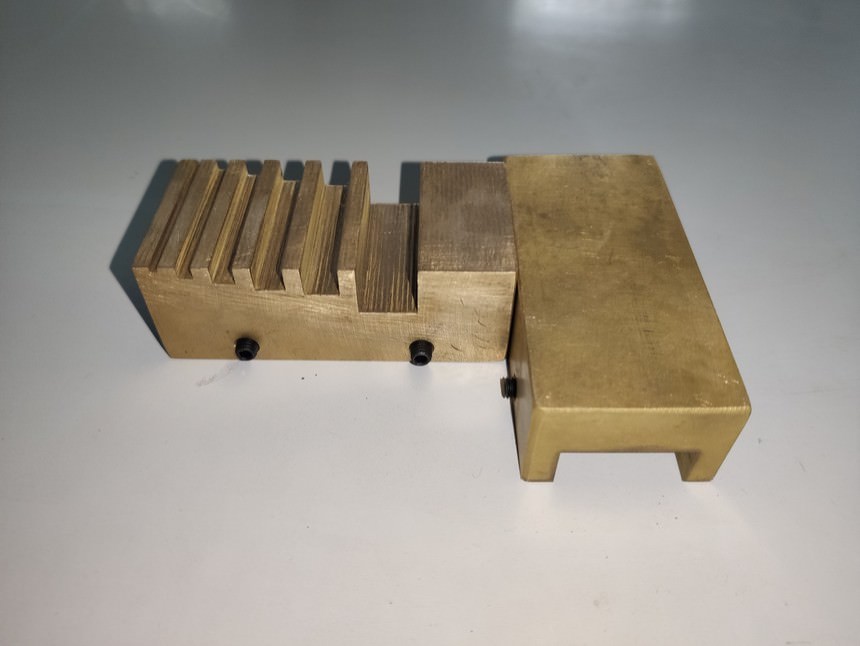

Square copper mold.jpg

3, Machine Movement stable by adopting pneumatic cylinder,Foot padel to control upper mold closing down ,

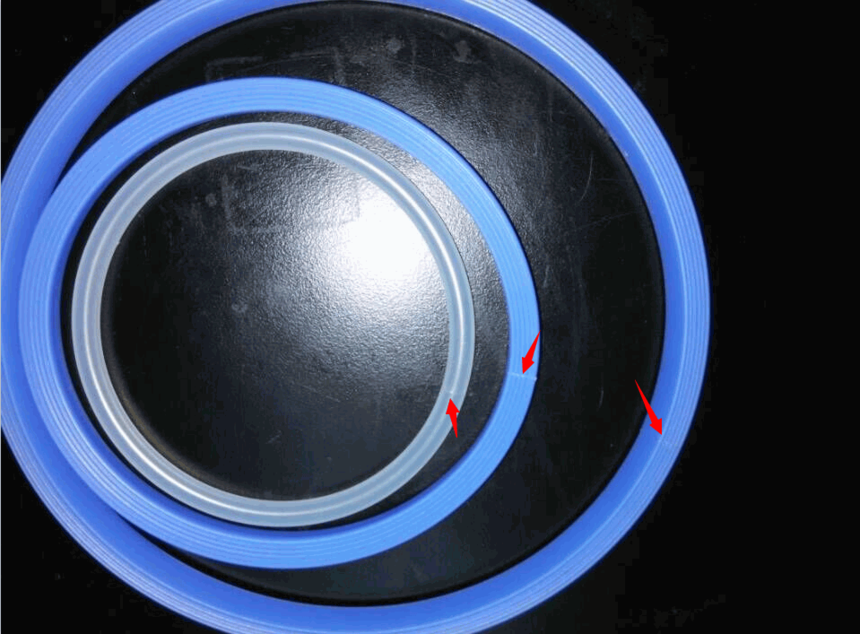

Mold pressure ,heating temperature and time at adjustment,Self counting capability. The bonding trace is barely visible

bonding trace 1.png



【Safety Note】

1: Please read carefully the manuals before operating the machine, and new operators must pass job training tests.

2: Please check the power plug and air plug and confirm both have been connected correctly. Make sure that the earth wire is connected reliably with the device’s body, and check all components that have been installed firmly.

3: In the operation, operating the same machine at the same time by two or more people is banned.

4: In the event of abnormal operation should immediately turn off the air supply firstly, then shutting down power switch. After that, the professionals must check and treat the machine.

5:Pull off the air pressure tube and shut down all the power while the machine not working also turn off the power while you have to change the mold in case of touching electricity.



【Routine Maintenance】

To extend service life, please maintain the equipments and confirm that they are in good condition, mainly depending on the following rules:

1: Environment: keep the working environment clean, without dust

2: Power: stable power supply, if not, voltage stabilizer will be necessarily installed on the machine.

3: Air supply: Keep the compressed air clean, without any dust, and let out the polluted water from the filtering cup regularly.

4: Keep the equipments clean, and confirm the moving part without dust interference. If not using the machine for a long time, please coat rust-proof oils on the adjusting screw rod, pack it well and arrange it properly.

5: Add the lubricating oil on the moving part of the equipment.

6: Before bonding tubes, please check the pressure and temperature of upper and lower copper-formed.



【Warranty】

All  the spare parts of this silicone o ring cords jointing machine  ES-067  except the knife will have one year of free maintainance by changing the spare parts for free

and free shipping of spare parts to overseas clients starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1Set/Wooden case  ,Foam paddings will be placed inside the wooden case  for safe shipping overseas
