Silicone and PE sponge tube cutting machine ES-105

Silicone and PE sponge tube cutting machine  ES-105

The Silicone and PE sponge tube cutting machine ES-105 is designed for automatically cutting silicone or PE sponge , sponge insluation tubes , automotive sponge tubes , aluminum corrugated tube,sponge Fiber tube to precise cutting length and smooth and straight cutting edge without deshaping the sponge tubes

As the silicone or PE sponge tubes is soft , the machine applies with  300mm Upper and lower conveyor belt feeding , the feeding and transporting sponge tube pressure can be adjusted to transport sponge tube to fixed cutting cutting and without deshape the tubes .

This PE sponge tube automatic cutting machine is designed with fixtures for simultaneous multi-piece cutting, the ES-105 significantly speeds up production and the fixture is only a little larger than sponge tube size , making cutting edge is quite straight with steady hold of fixture and rotation knife cutting .

The foam cords cutting machine will be easy to operate with simplified control boards ,we can also customise to put on slitting knife on top to cut open the foam tube so it can wrap some core sticks inside for insulation or warm keeping purpose .

Youtube video

Silicone sponge tube cutting

PE Sponge tube cutting

The rotary knife design trims tube edges perfectly, ensuring a smooth, even finish every time, this rubber sponge tube cutting machine  is capable of cutting tubes with diameters ranging from 2 to 50 mm (or up to 80 mm,  two type machines to choose from) with cutting length range from 2 mm up to 99,999 mm.  it is driven by either a 57-76 stepper motor or an 86-96 servo stepper motor , this machine  can achieves cutting outputs of 50-150 pieces per minute (depending on tube length)

【Technical Data】

Product name: Silicone and PE sponge tube cutting machine  ES-105

Model: ES-105

Use: Cutting sponge tube, silicone foam tube, rubber foam tube

Features: Straight cut, no deformation, cutting multiple sponge tubes

Cutting principle: High-speed mobile rotary cutting.

Input voltage 220V

Frequency 50/60HZ

Operation display: Touch button

Language: Chinese/English switch

Tube cutting diameter: 2-50mm/2-80mm

Cutting length: 2MM-99999MM

Maximum cutting width: 300mm

Cutting efficiency/output: 50-150 pieces/minute (determined by length)

Cutter material: imported SKD-9 high-speed steel

Motor type: 57-76 stepper motor/86-96 servo stepper motor

Machine power: 1.5kw

Air pressure requirement: 0.4-0.6Mpa Air pressure must not be less than 0.4 kg

Machine dimensions: length 110 width 78 height 114CM cm

Machine weight: 170KG

【Product Advantage】

1, Straight and smooth cutting edge  with horizonal rotation  knife to  trim the cutting edges to straight and smoothness

2, Big double transport band to transport the foam tube cords which avoids slipping during transporting and maintains cutting length precision and

at the same time , the double transport belt bands distance can be adjusted to apply suitable pressure to transport sponge tubes and avoids deshaping the soft sponge tubes

3, High productivity  with fixtures to enable  multi  pieces sponge tubes to be cut at the same time .

4, Slitting PE or silicone sponge tube in middle for making insulation sleeves

【Product Detail 】

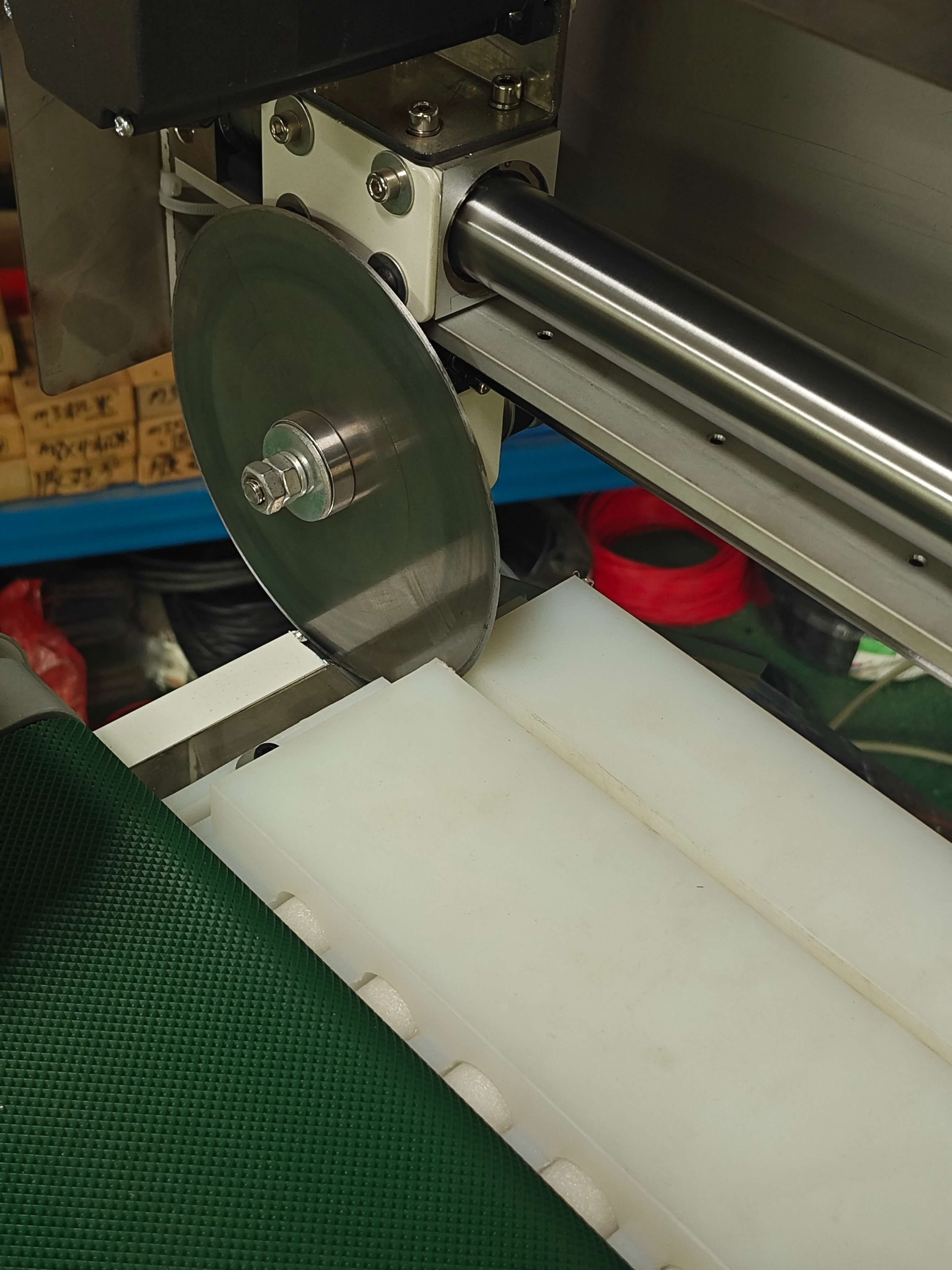

1,Rotation knife  , this PE sponge tube automatic cutting machine  applies with rotation knives which the knife rotate on itself

and cut to sponge tubes egde with smoothnesss ,the cutting edge will be very straight .

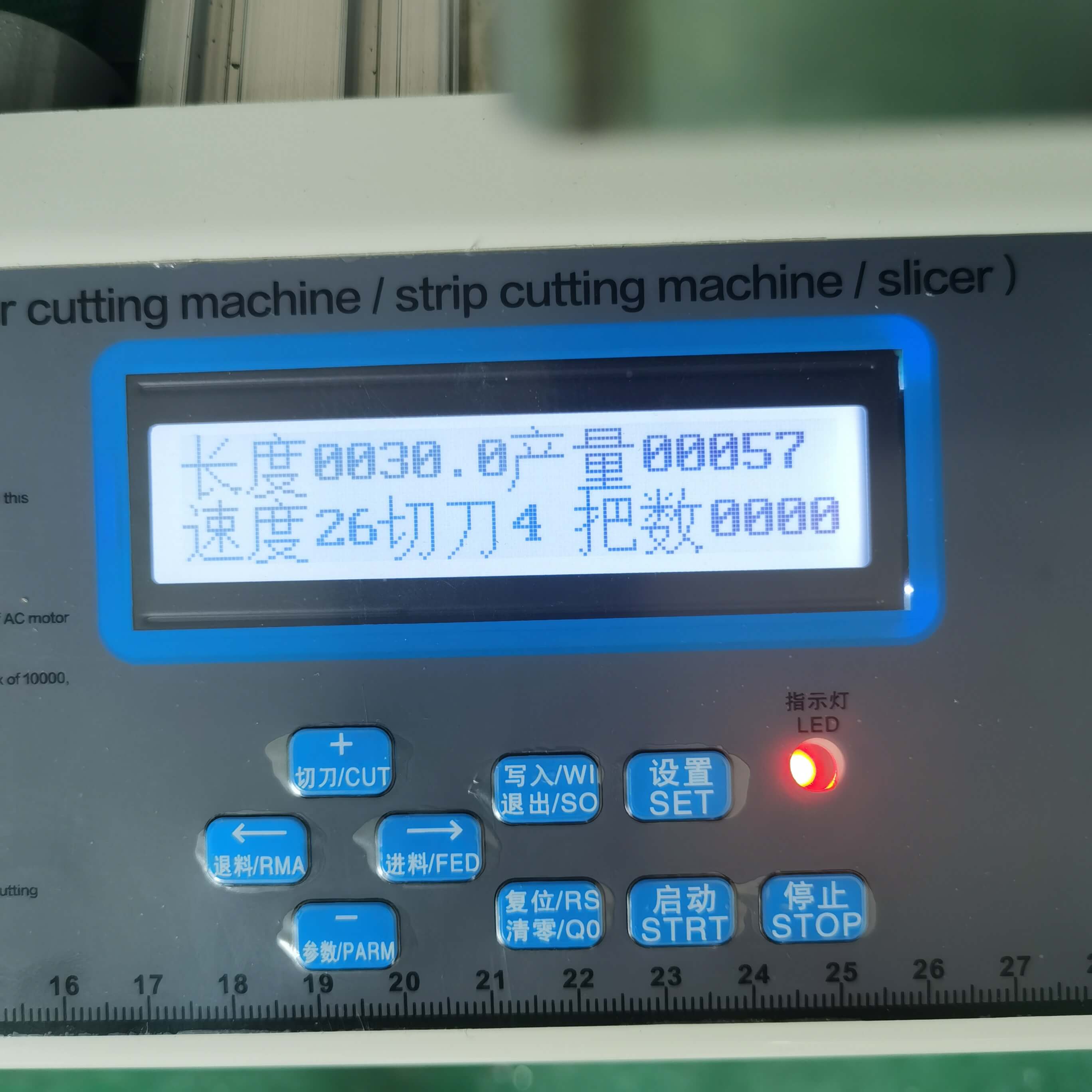

2,LCD Operation screen ,this rubber sponge tube cutting machine  will be easy to operate  . Length and speed can be adjusted continuously at will,

microcomputer program  control accuracy  reaches 0.2mm, Batch pause and delay time can be set , after reaching total cutting quantity  ,the machine would stop for

a few while for production people to change collection box for packing up and then the machine would keep working after the pause to work on cutting next batch.

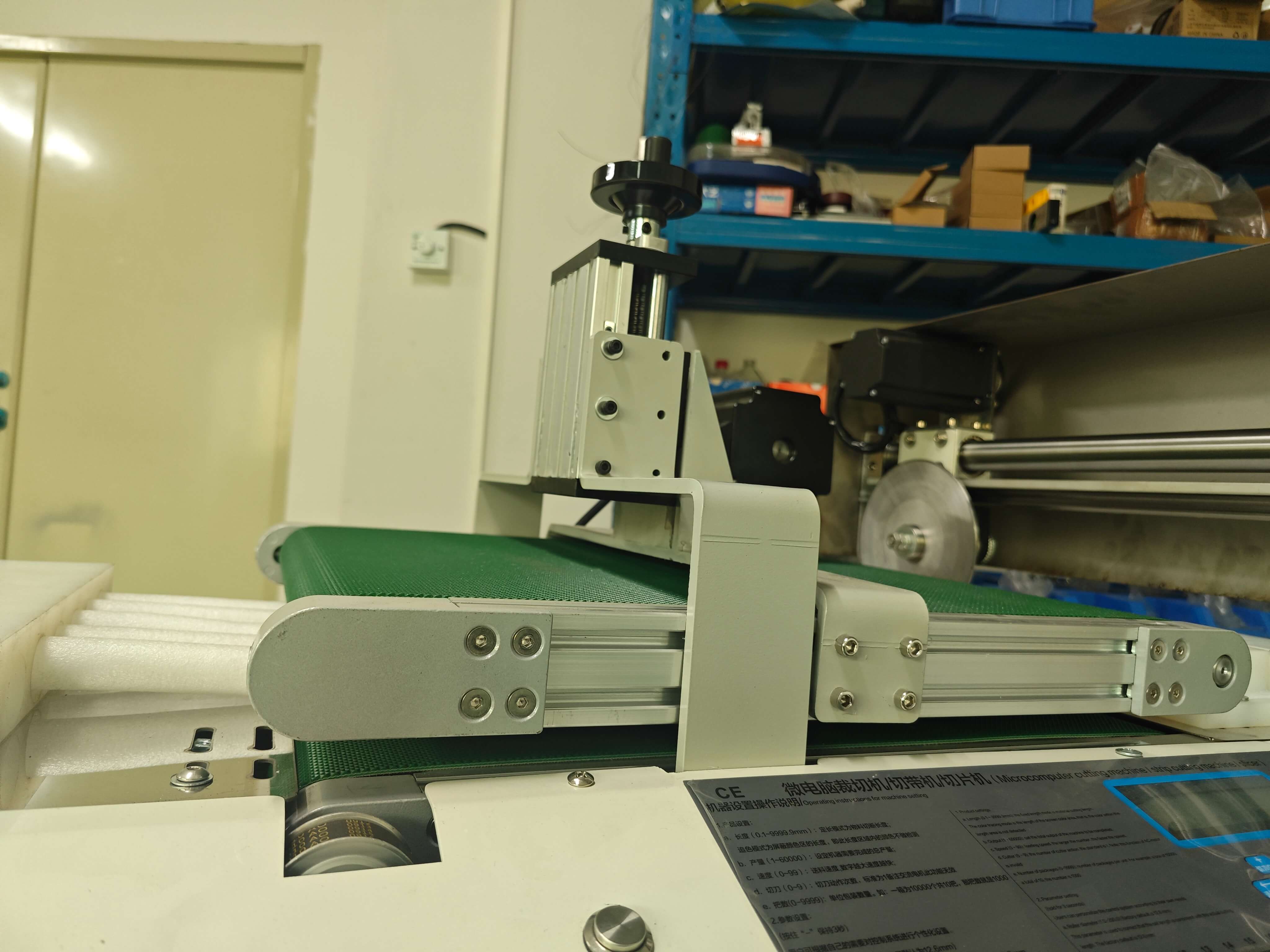

3,Double transport belt bands ,the benefit of big double transport band is that it allows this PE foam tube automatic cutting machine to have large contacting surface

with foam tubings and increase abrasion so as to gurantee cutting length precision ,meanwhile , the big transport belt band distance can be adjusted to apply moderate

pressure to transport the foam tube to length and avoids deshape of foam tubes after cutting .

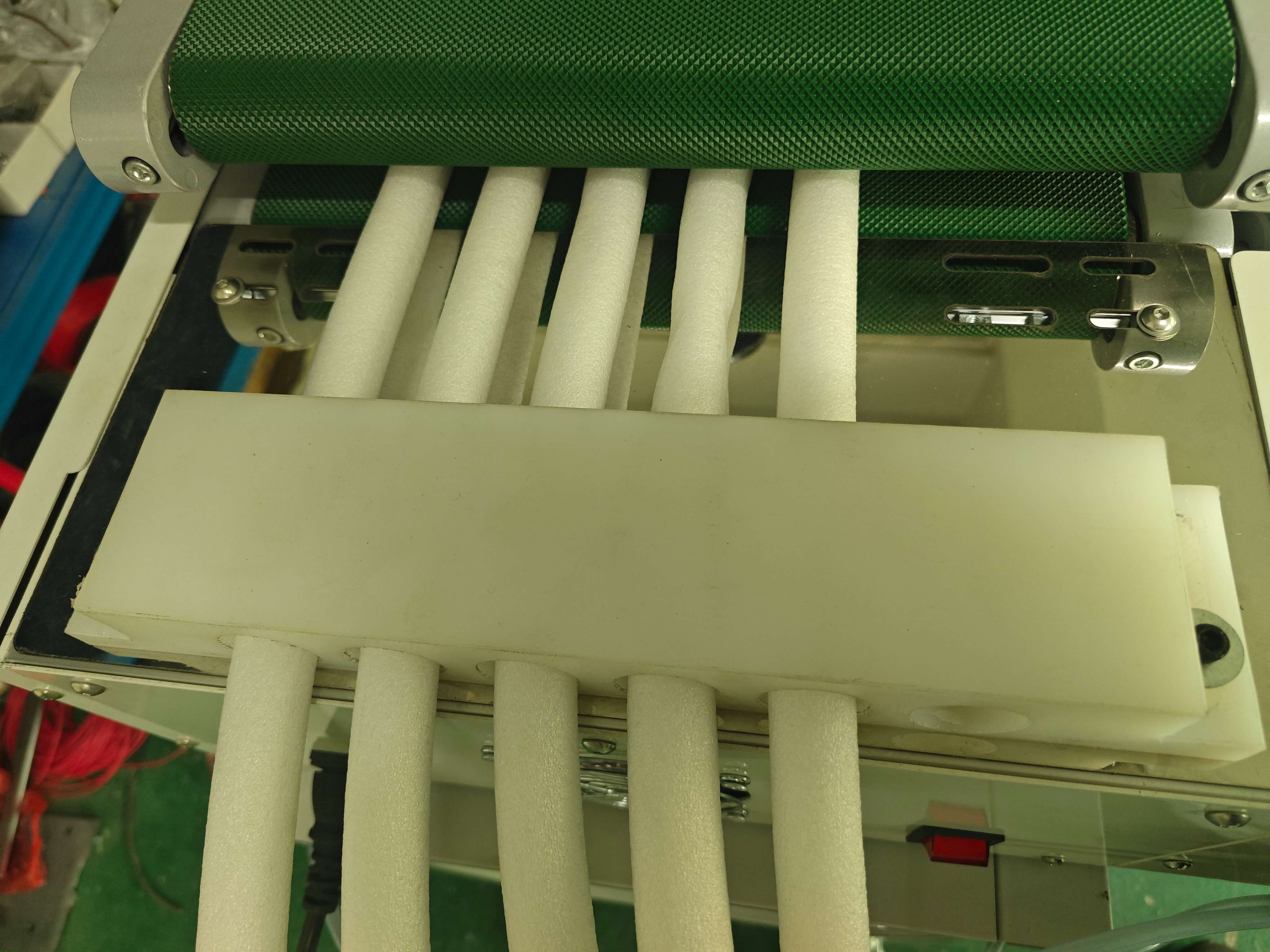

4,Multi fxitures holes to ensure multi pieces to be processed at the same time to ensure  high productivity  and cutting edge straigtness  ,every silicone

or sponge tube passes through one individual  fixture hole which fits the sponge tube size just well . also there is fixture hole down  side the knife .

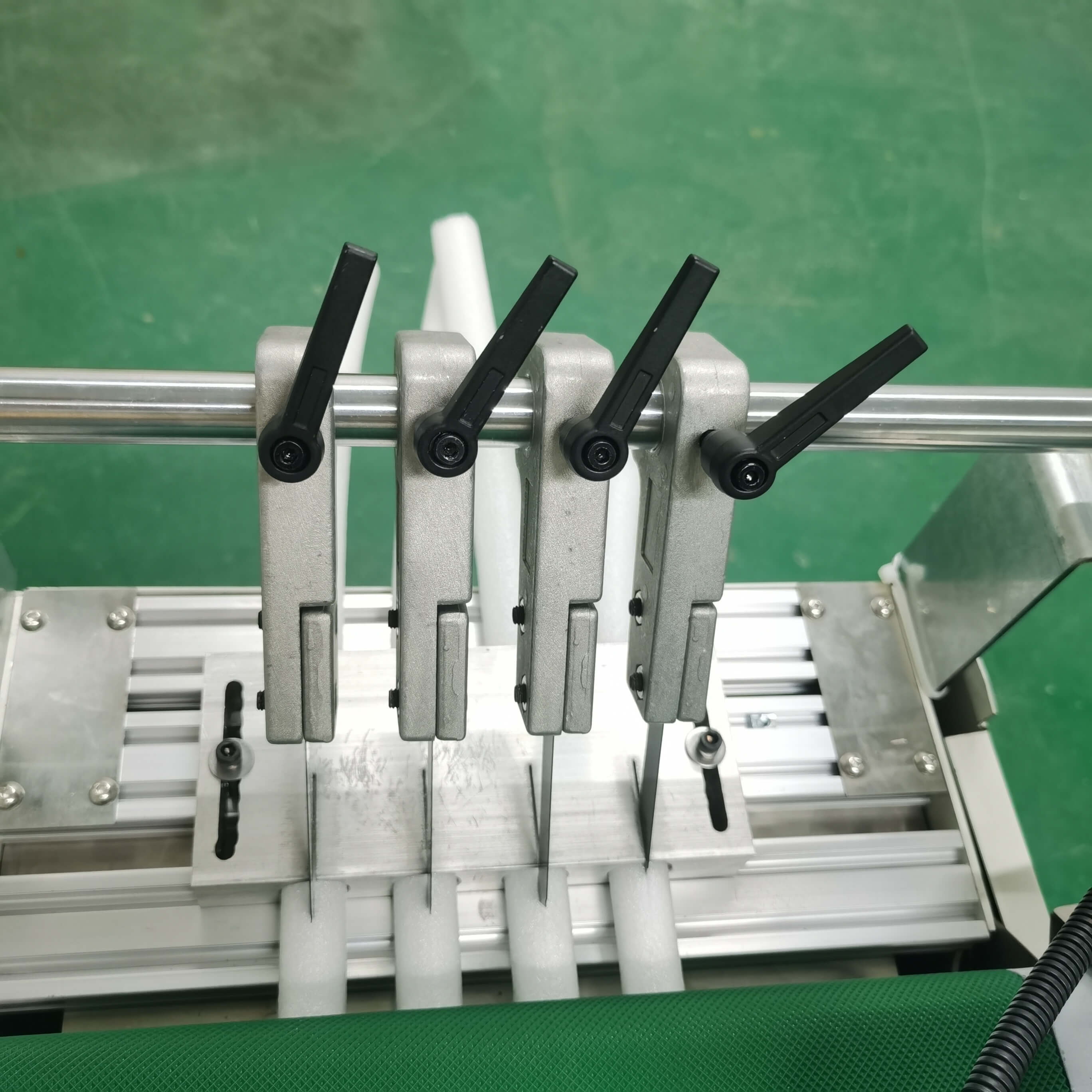

5,Slitting knife to slit the sponge tube material in the middle to make an opening to wrap a core stuff for insulation or trapping

heating .

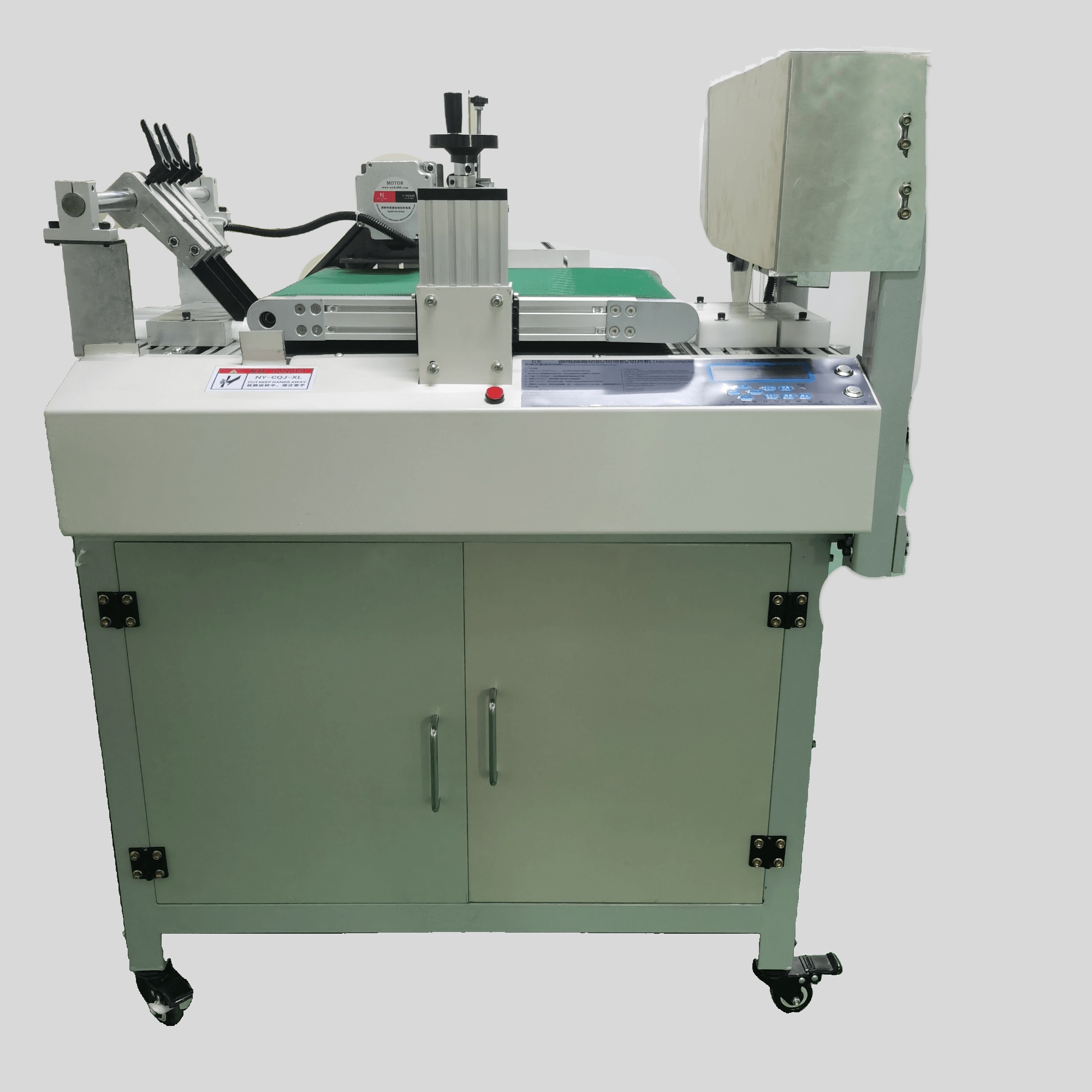

Front View

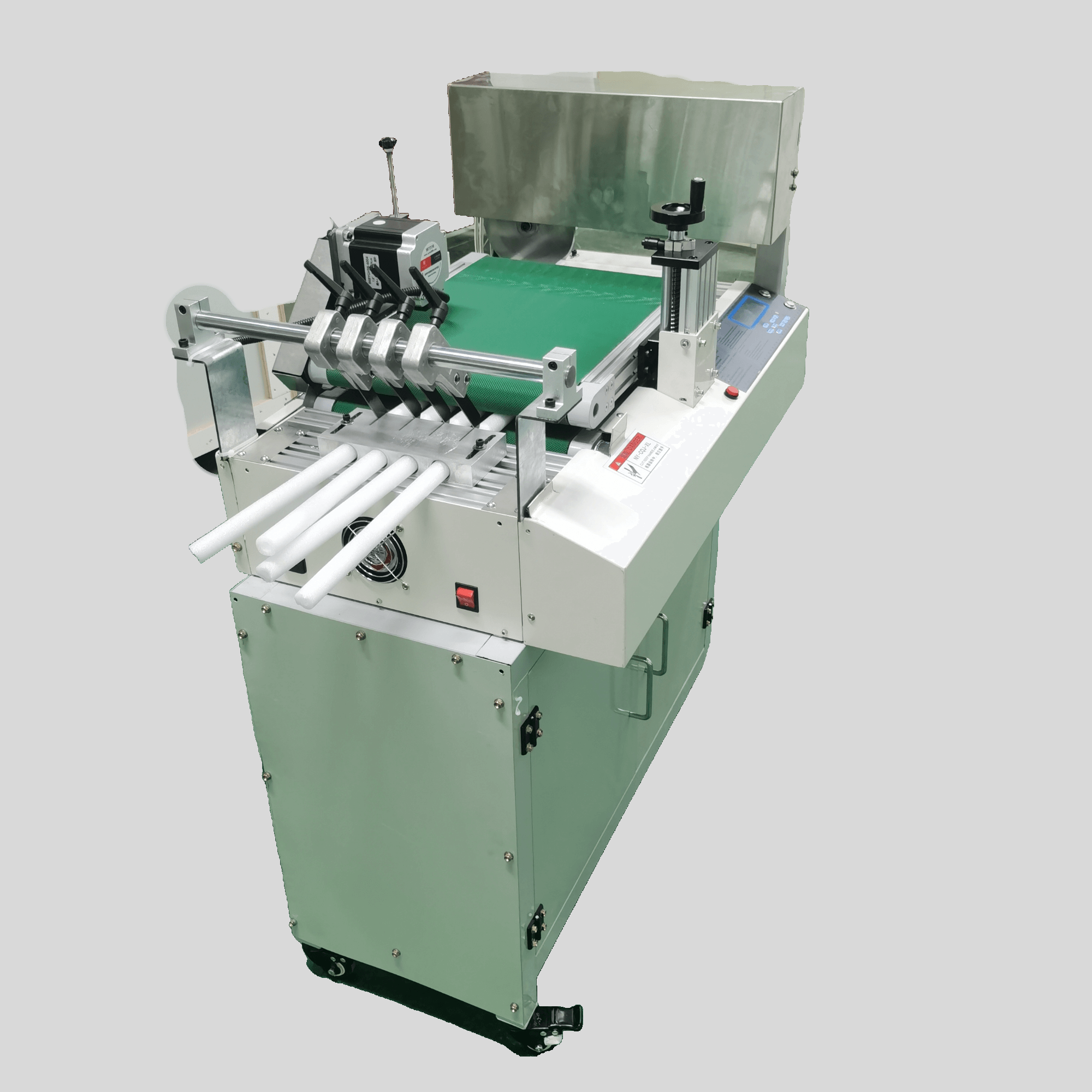

Side View

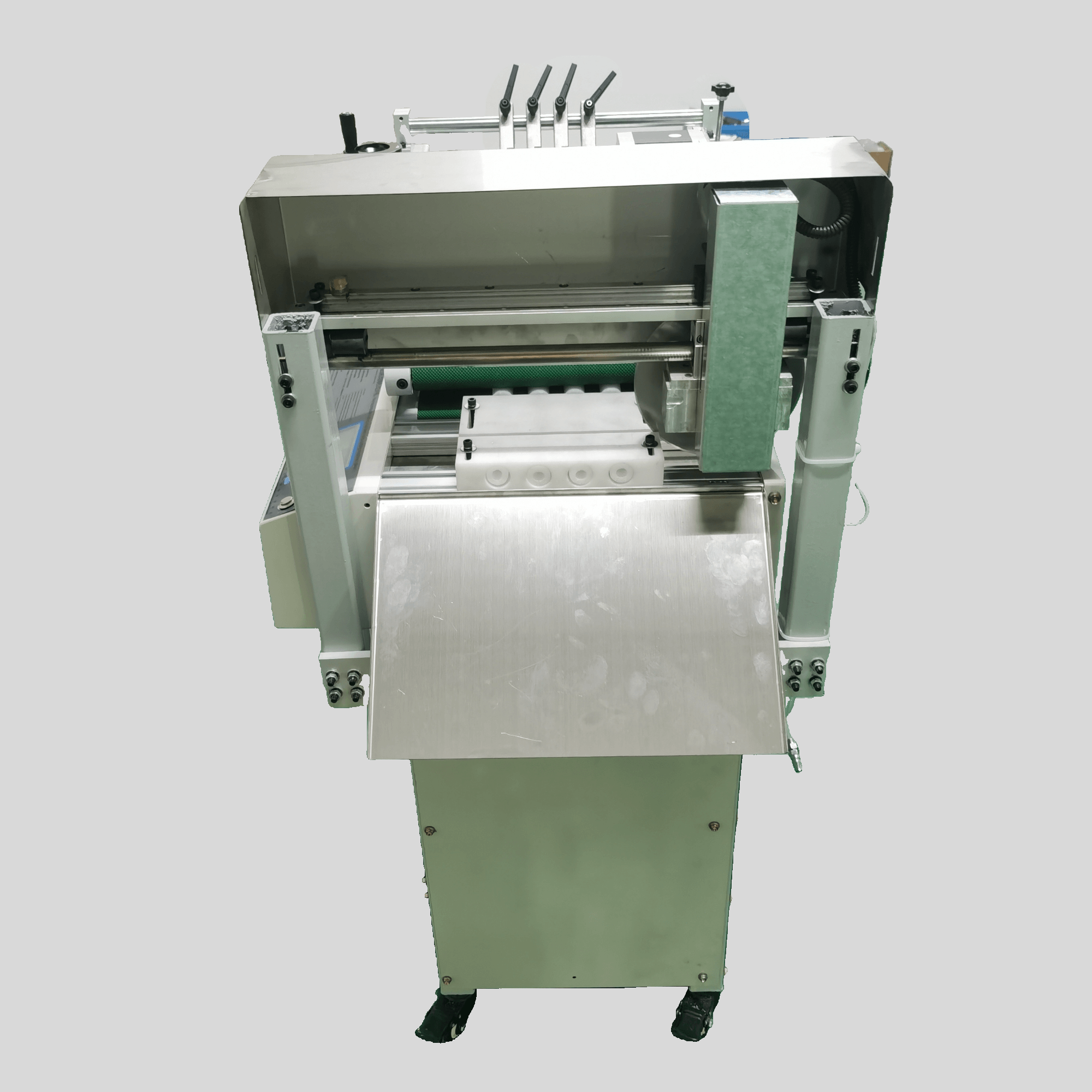

Side View

【Warranty 】

 As a professional cutting machine manufacturer , all the spare parts of Silicone and PE sponge tube cutting machine  ES-105  will have one year of free maintainance  by changing

the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
