Adhesive silicone gasket strip laminating machine

Adhesive silicone gasket strip laminating machine   ES-020

【Product Description】

The adhesive silicone gasket strip laminating machine is designed for laminating silicone strip and other shape silicone gaskets profiles with double side 3m tapes ,since the silicone material is inertia ,  this adhesive silicone gaskets primer coating laminating machine will brush a fast dry silcone primer on the silicone gaskets surface to treat its surface ,so after the silicone surface laminate with double side tapes, there will be a strong bond betwen silicone strip and double side tapes .

This silicone strip with double side tape laminating machine has a primer container where the silicone primer are held ,the silicone primer is issued by air source from the primer container .the primer will reach the primer brushing device where a cotton is inserted and it is dipped with primer and brush it on the silicone surface .  there is also a valve which can adjust the flow amounts of silicone primer to control the dipping amounts of silicone primer . too much primer will render it hard to dry on silicone surface , too little primer will compromise the adhesion of silicone and double side tapes .so customer should adjust to the right dipping amount of primer .

Youtube video

The laminating width for the silicone extrusion material ranges 2- 25mm ,it has two working mode , manual mode with foot switch and full automation mode by turning on machine button , the manual mode is to check laminating performance if ok before mass production . the working speed is 100mm/s with adjustable laminating speed .the lamination rollers will be customised based on specifical silicone gaskets  strip width. the upper roller is protruded and down roller is grooved to fit and laminate well between silicone and 3m tapes ,  the lamination pressure is from connected air sources  , the fixtures is adjustable to different width of silicone strips .

The best advantage of this  adhesive silicone gaskets tape lamination machine is that the machine combines primer brushing and lamination of silicone strip and double side tapes in one machine which is of high productivity and save labour costs to manually brush primer on the silicone surface then laminate by hand to join silicone strip and double side tapes .

【Technical Data】

Product name： Adhesive silicone gasket strip laminating machine

Model No.：ES-020

Function： Brush primer+laminate silicone gasket strip with 3M tapes

Working speed：100mm/s

Lamination roller：to be customised

Fixtures : Adjustable fixtures

Laminating width range ： 2-25mm

Working mode：Manual&auto

Motor：Gear motor

Power：50W

Net weight：15kg

Machine dimension：600*260*490 MM

【Product Advantage】

1, Good lamination quality with adjustable fixtures and customised laminating rollers ,air powered laminating force,

well controlled dipping and brushing amount silicone primer

2, Primer brushing  on silicone strip and lamination of silicone strip with double side tapes in one machine

3, High production efficiency ,save labour to  brush primer on silicone strips and then press join silicone strip

with double side tapes manually

【Product Details】

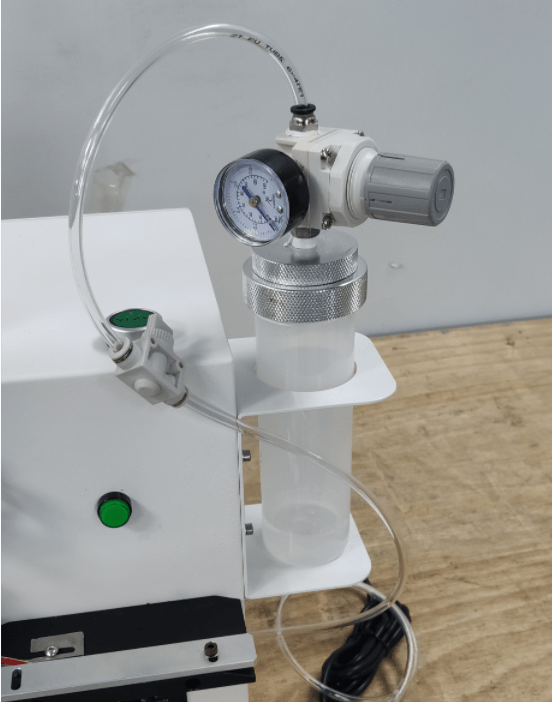

1,Silicone primer container to hold the silicone primer , the silicone primer is loaded in the primer

container and press out the primer by connected air sources .

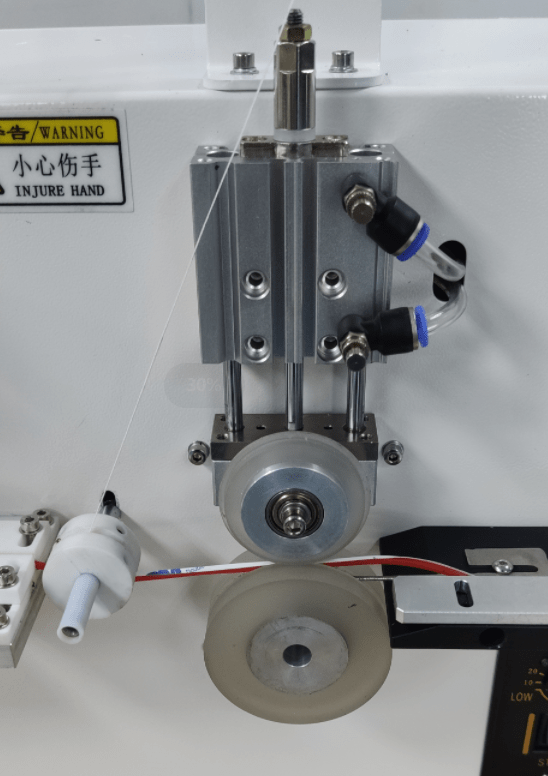

2,Laminating rollers ,the upper mold part is protruded and down roller is grooved based on the specifical

silicone strip width ,so they fit well and gurantee good lamination of silicone strip and double side tapes

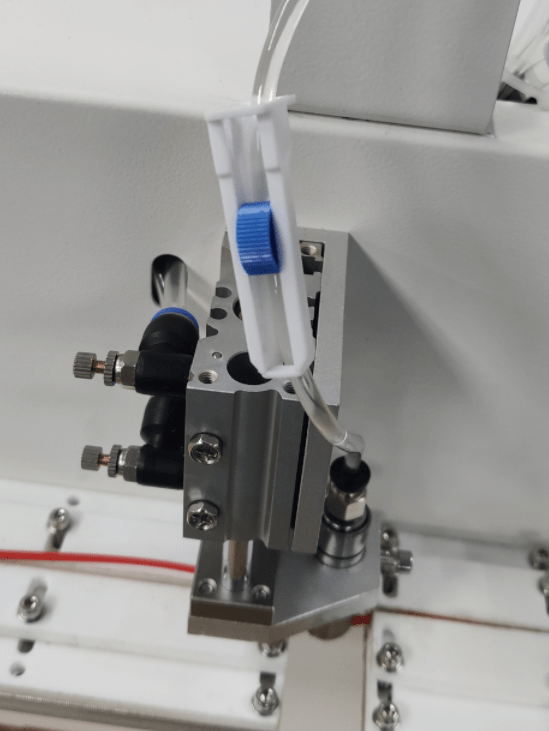

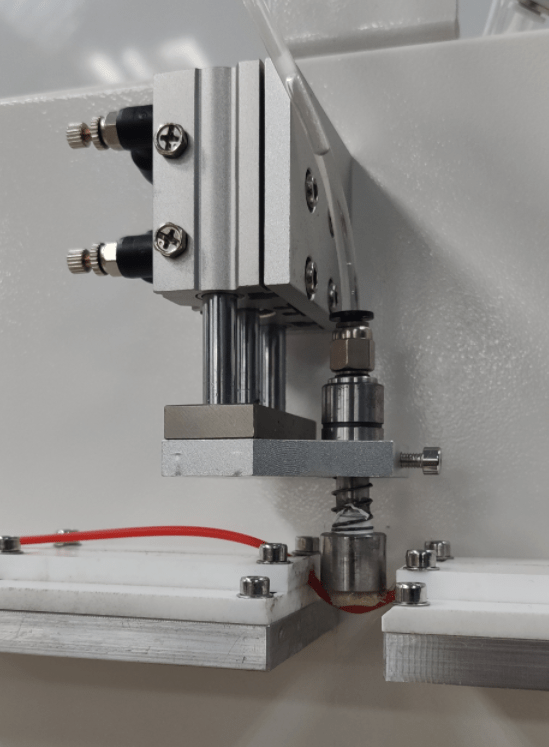

3, Primer brushing device  ,there is cotton inserted in the brushing device which is good to contact

and brush the silicone gaskets strip surface

Valve to to control the dipping amounts of silicone primer, too much amount brush of primer will render primer

hard to dry on silicone strip surface , too little brush amount of primer will weaken adhesion of silicone strip

and double side tapes

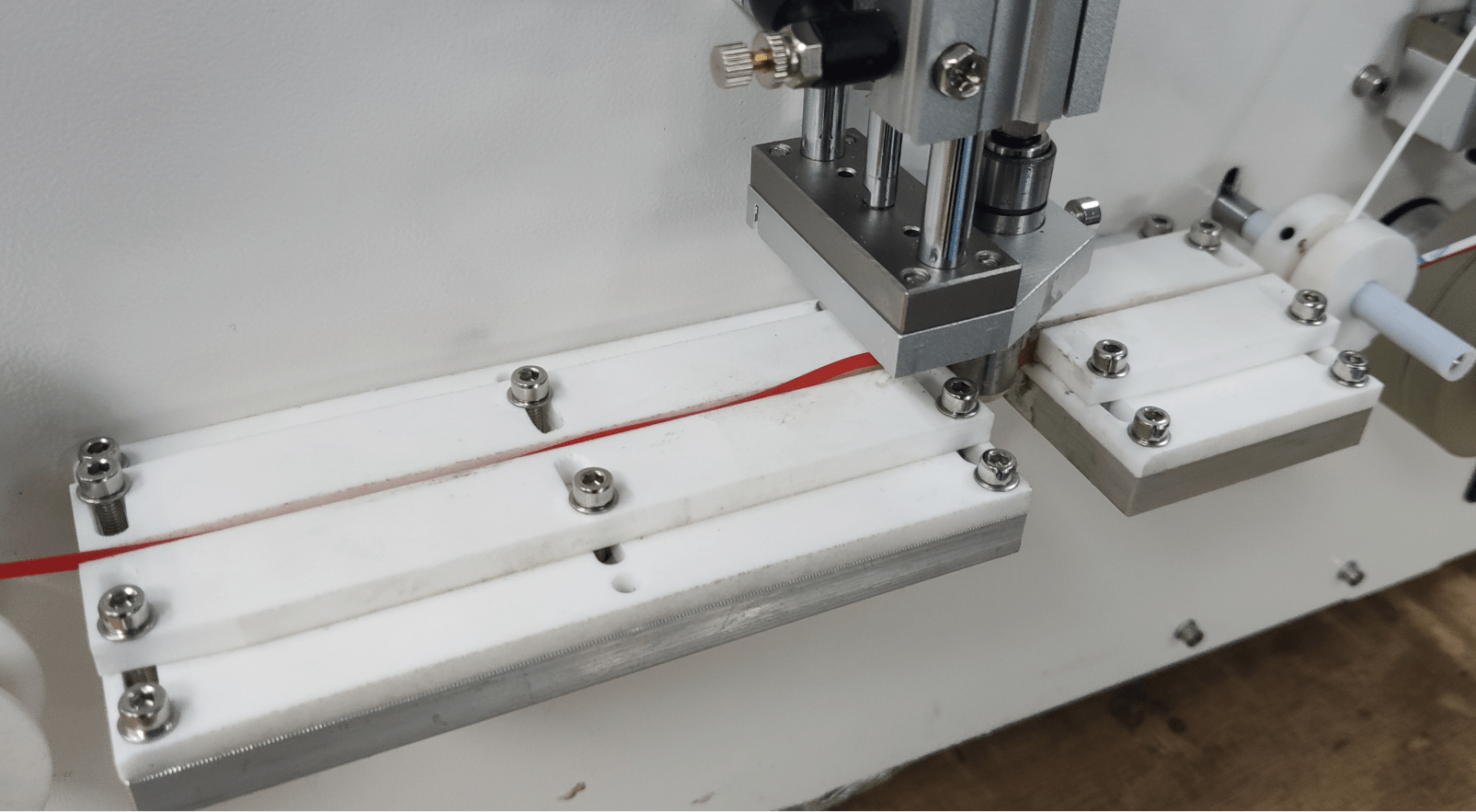

4, Adjustable fixtures, the fixtures can adjust the space to fit different width silicone gasket strips

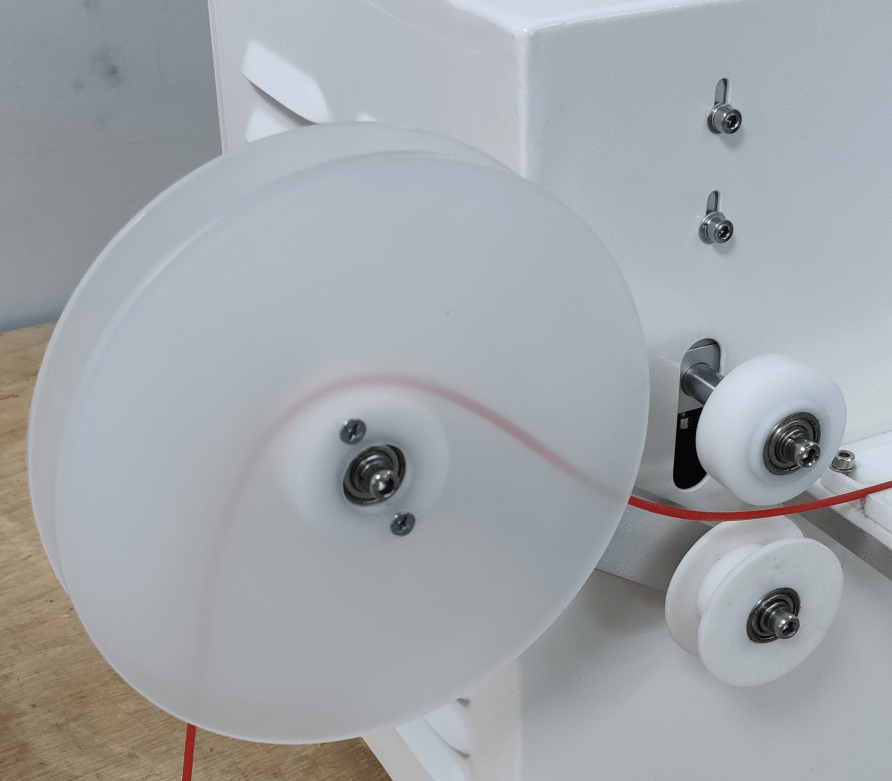

4,Holder board to hold straight direction of silicone gasket strips for smooth transporting

of silicone strip for lamination process

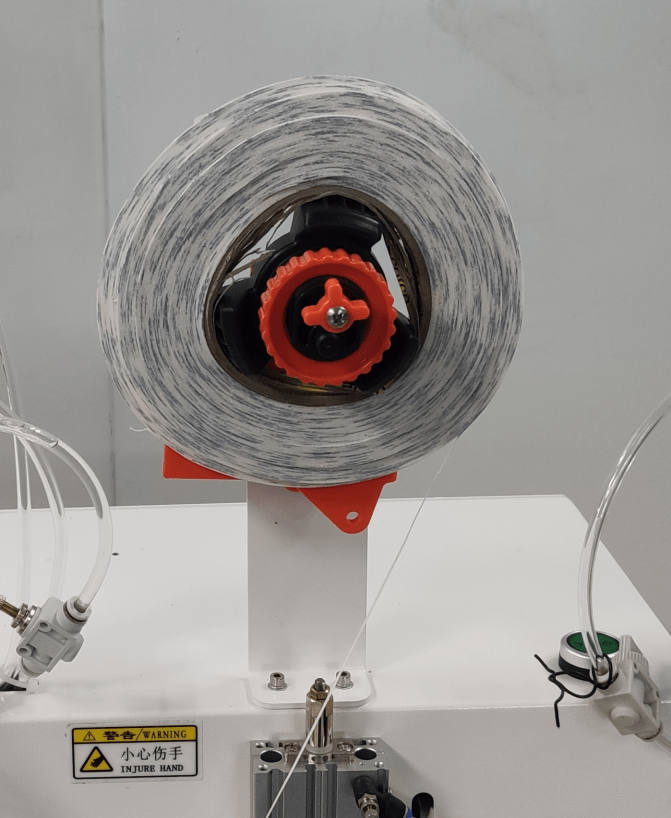

Upper 3m tape holder  which can adjust inner size to support and hold different 3m tapes

for good transporting to join with silicone strip for lamination process

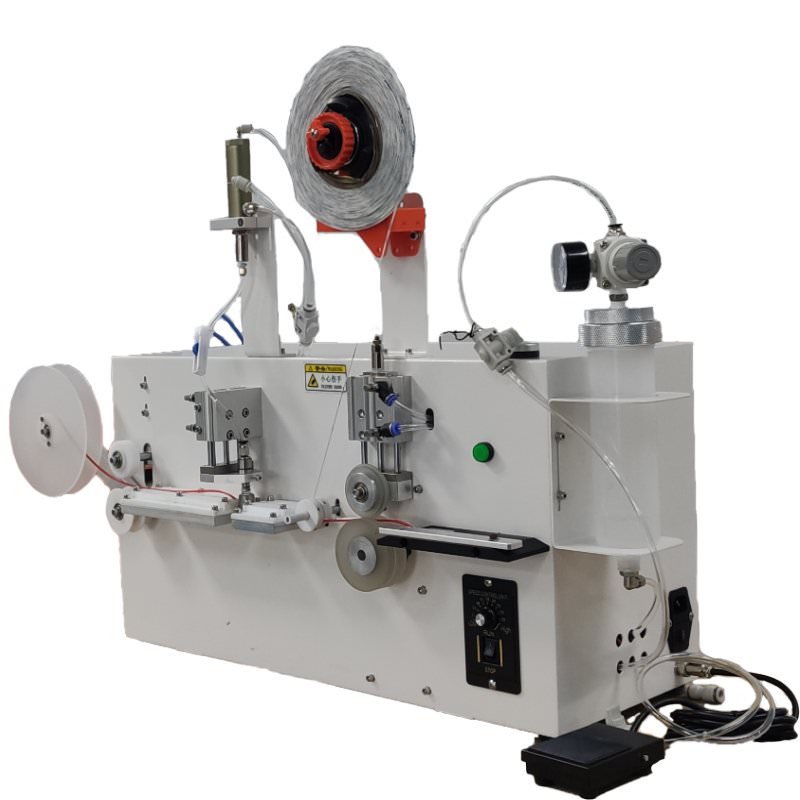

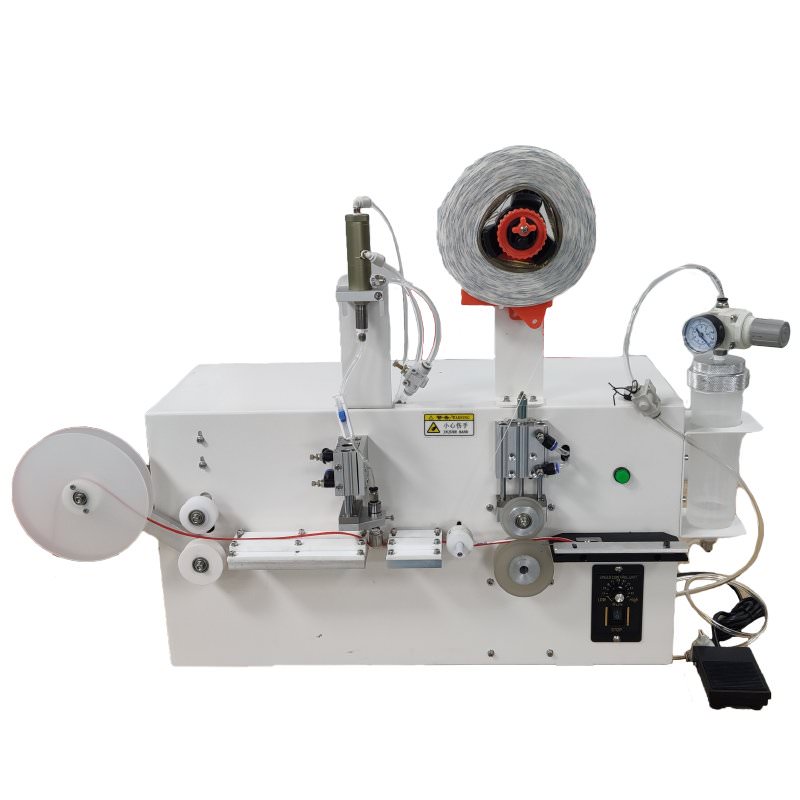

Front View

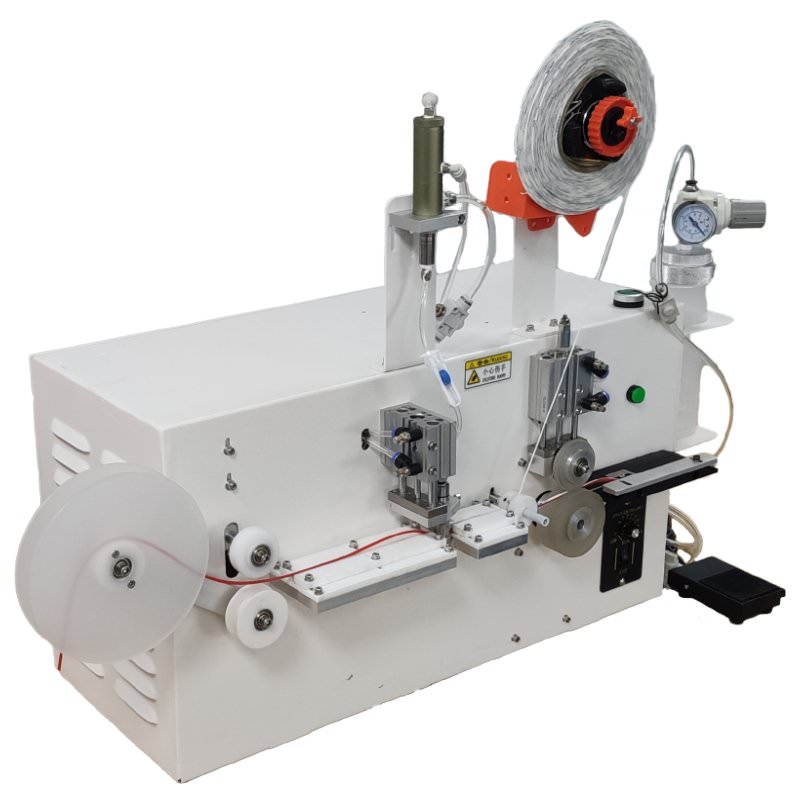

Side View

Side View

【Warranty 】

 As a adhesive silicone gasket strip laminating machine supplier , all the spare parts of the  ES-020 machine will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice

after on line diagnosis .

【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
