Silicone extrusion machine ES-055
Silicone extrusion machine ES-055 Silicone extrusion machine ES-055 Silicone extrusion machine ES-055 Silicone extrusion machine ES-055

Silicone extrusion machine ES-055

Product Details
Brand ESMAI
Serial Number ES-055
Country of Origin China
Certificate CE
Payment & Shipping Terms
Price Quote Based on quantity
Minimum Order 1 SET
Average Delivery Time Production15-25 days, delivery time by sea
Payment Method TT
Package Details 1SET/WOODEN CASE
Ability to Supply 100 Sets/ month

Silicone extrusion machine ES-055



The  silicone extrusion machine is designed for extruding and making extruded silicone products like silione tubes ,silicone strips ,silicone profiles with good quality , the extrude silicone products have small size tolerance up to +-0.06mm ,the extruded silicone product is smooth surface both inside the wall or outside the wall and had no bubbles ,smooth surface . the silicone tube wall thickness reach up to 0.2mm

The whole silicone extrusion production line involves one silicone extruder , one shape forming heating tunnel and 3- 4 sets curing heating tunnels based on customers' silicone product sizes

The  heating tunnels raise heating temperature really fast with high efficiency heat tubes and keeps the temperature in stable which ensures the extruded silicone products are fully vulcanized .

silicone extrusion machine





Youtube video



This extrusion silicone rubber machine  applies PLC touch screen controls  and reserve some simplified physical keys which is easy to operate ,one of the main advantage is that you can store your specifical silicone product prameters in the machine , like curing tempearture ,speed ,curing time etc in one package recipe ,you can store the recipe and retrieve it and apply the previous silicone product prameters with one key pressing on the touch screen .

With IO monitoring , each  alarm code can trace to exactly to exact problem or which spare parts had failed which allows us to locate the problem exactly and offer solution accordingly .

The silicone extrusion machine ES-055 will boost productivity for silicone extrusion manufacturers ,based on the silicone product size of our customer ,we have 25,65, 85 size machine , below the extruded silicone products , the silicone extruders ES-055 are wide application to all kinds of silicone tubes ,silicone profiles etc .

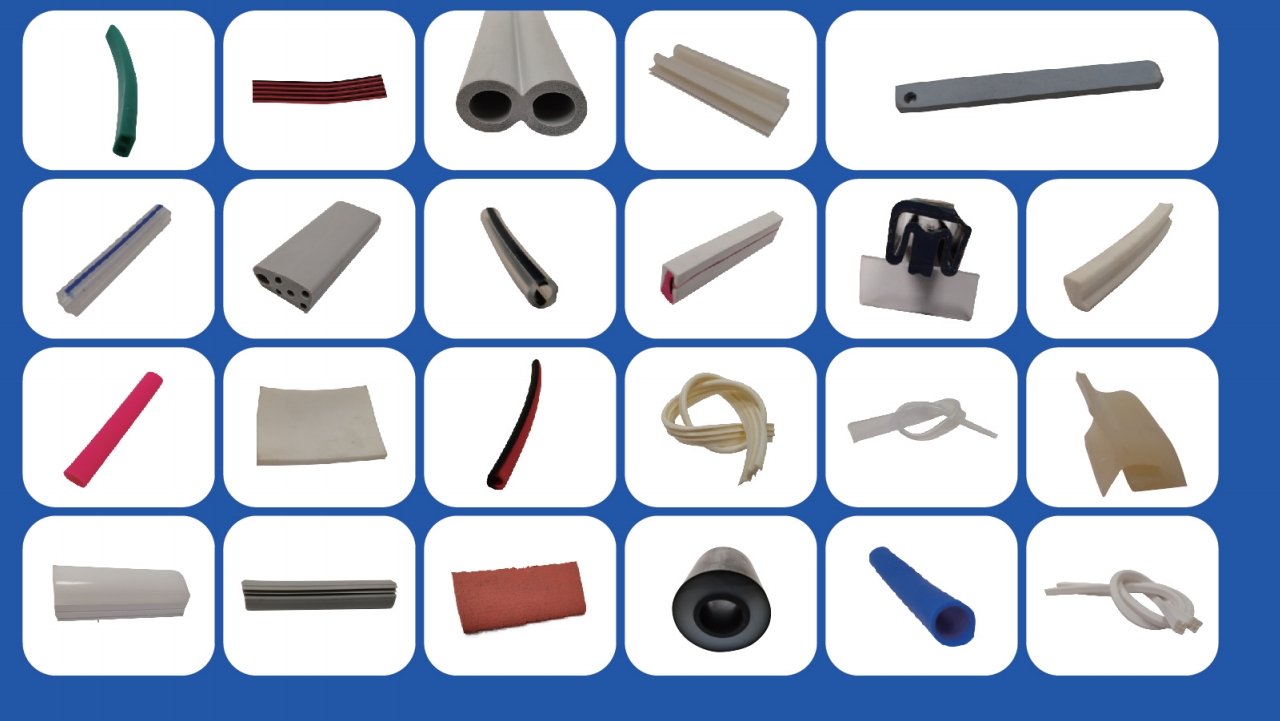

extruded product sample



【Technical Data】


Silicone extrusion machine

Model No. /Item Screw diameter Screw compression ratio Screw type  Screw rotation ratio Motor power/KW Machine center height /mm  Output (machine head kg/H) Actual production KG/H Size(L*W*H) N.W(KG)
ES-055-1 25 2.6:1 Singles screw trace,  not same distance and depth  0-60 2.6 1000 40 5-20 1000*600*1140  400
ES-055-2 65 2.6:1 0-50 7.5 120 30-70 1900*620*1230 900
ES-055-3 85 2.6:1 0-45 15 220 30-100 2080*640*1250 1100

silicone extruders



Shape forming heating tunnel

Model No/Prameter Heating power/KW Power consumption KWH Temperature control range  Heat tube material  Temperature raising time (to 700℃)  Size(L*W*H) Net weight (KG)
ES-055-W 10 7 One phase  Stainless steel 45Min 500*500*1220 180
ES-055-H 12.5 8 One phase  Stainless steel 40Min 800*500*1220 200

shape forming tunnel



Curing Heating tunnel

Heating power/KW Power consumption KWH Temperature range ℃  Transporting speed Meter/Min Foot wheels under heating tunnel shelf Heating tunnel center height  Heat tube material  Temperature raising time (to 400℃)  Size(L*W*H) Net weight (KG)
5.2 3.5 25-400 40 yes  900(+50) Stainless steel 30Min 2000*500*1220 240
6.4 4.5 25-400  40 yes  900(+50) Stainless steel 30Min 2500*500*1220 290

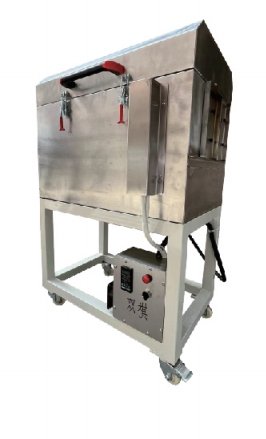

          baking oven

【Product Advantage】



1,Wide application to silicone tubes ,silicone strips and silicone profiles ,all kinds of silicone extrusion products



2, The extrusion density is good, the inner and outer surfaces of the silicone products are smooth, there are no bubbles on the extruded silicone products , easy to clean the remaining silicone material , the extruder screw is easy to disassemble, the minimum extrusion size tolerance can  0.06mm, and the product wall thickness can be 0.2mm



3, Economical energy saving  with good heating tunnel which keeps temperature well .



【Product Details】



1, PLC Touch screen control ,the silicone extrusion machine applies PLC touch screen control and

reserve some key physical buttons ,customer can set their product prameters on the machine

and save as one recipe and update lively the product processing matching speed .  With IO monitoring

, Every alarm code can trace to exactly which spare parts had failed and handle it in time .



Using a 100-pulse encoder knob with a servo motor can accurately adjust the servo speed in 1 turn,

and 10 turns is the full speed. It is more accurate than a potentiometer and has stronger anti-interference ability.



The touch screen monitors machine execution data in real time, given speed value, servo feedback speed value,

pressure value, meter number, single linkage value, current value, voltage current value and other real-time data.

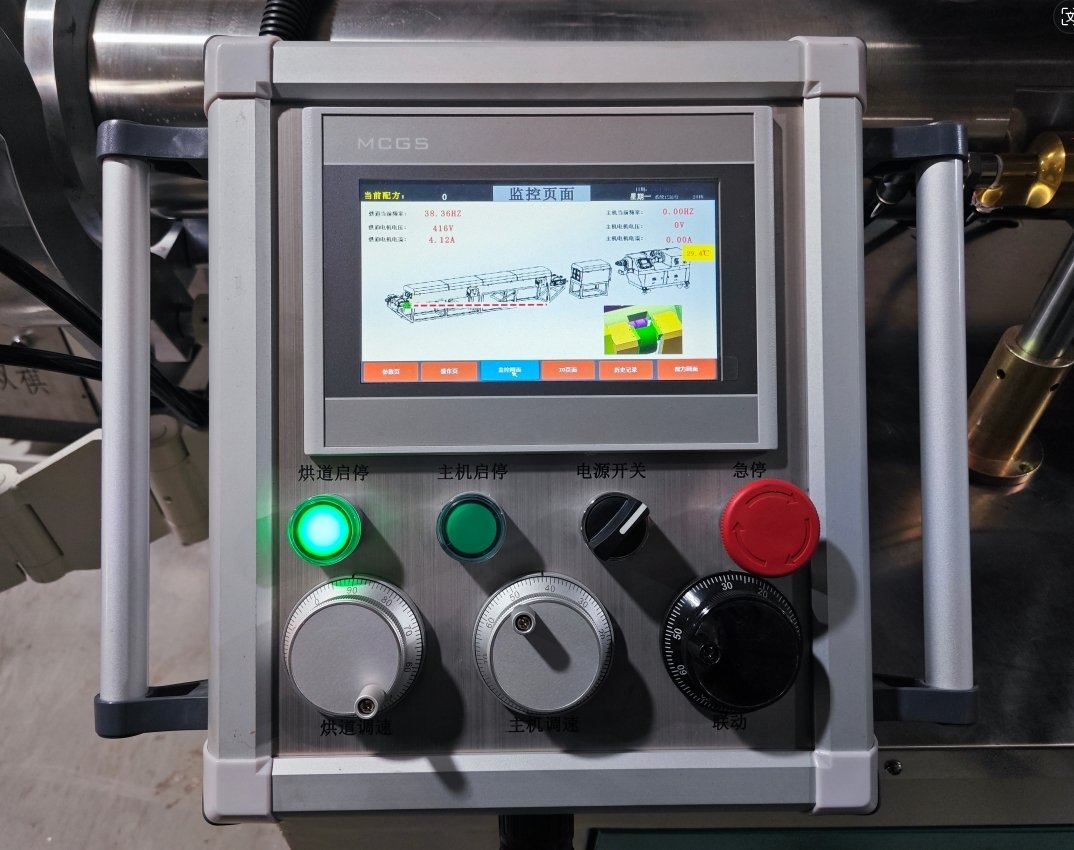

Operation control





2, Heating tunnel ,each tunnel furnace adopts an independent temperature controller, with a

temperature setting range of 0-400°C  and a balanced and stable temperature.

Using Taiwan Yang Ming 3P solid state relay, the empty ratio can reach 20 and the temperature control is more accurate.

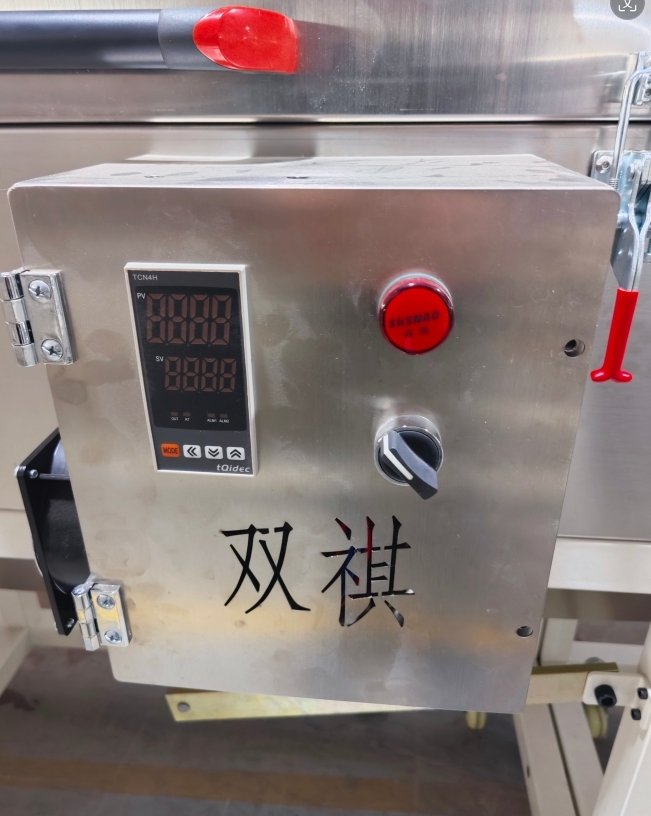

temperature controller





3,High power servo motor, the extruder applies with high power servo motor to ensure good and

 stable performance

Use Guomao industrial gearbox to ensure the concentricity of the screw barrel, no friction, no blackening,

and stable retreat force.

The inside of the barrel adopts spiral water cooling which ensures stable cooling and no partial heating.

The  extrusion screw, silicone material feed roller, barrel and extruder head all have water cooling circulation

The extruder head is vital for machinery and with high frequency quenching and tempering and clear electroplating surface treatment

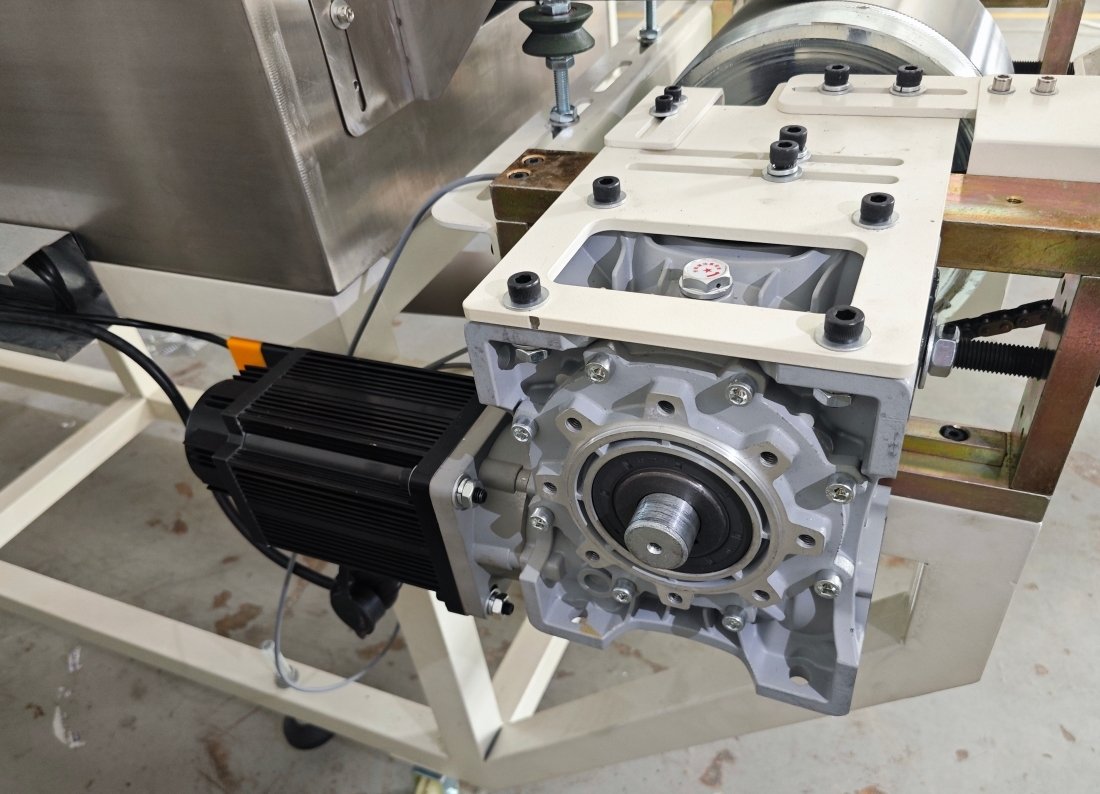

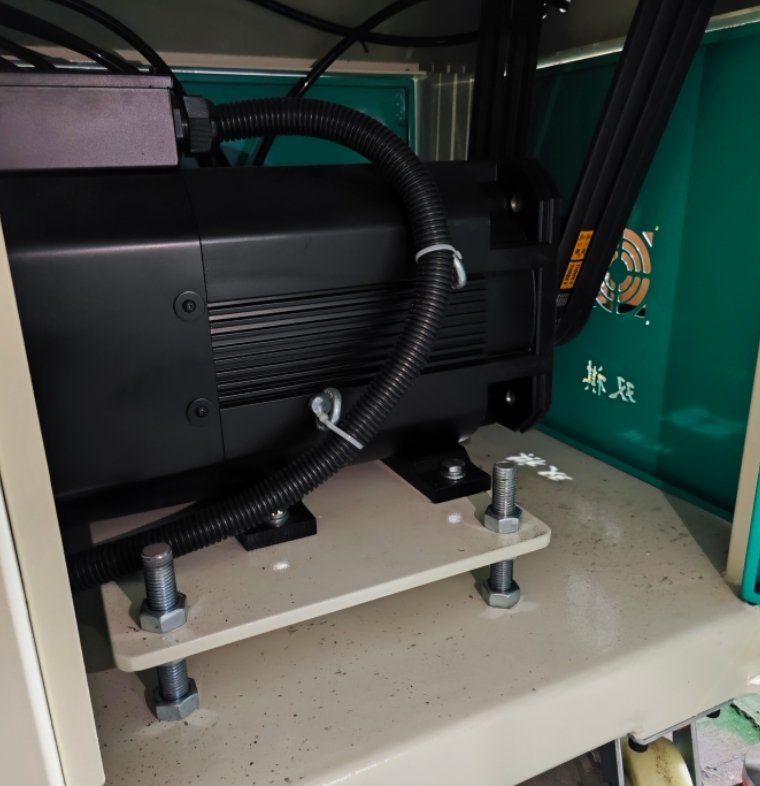

servo motor

gear



4, Heating tunnnel  ,The heating tunnel temperature maintains stable, the heating tube has high heating efficiency

and fast heating speed, and the stable conveying  and heating silicone tube in the tunnel furnace ensures

that the extruded silicone tube is fully vulcanized.

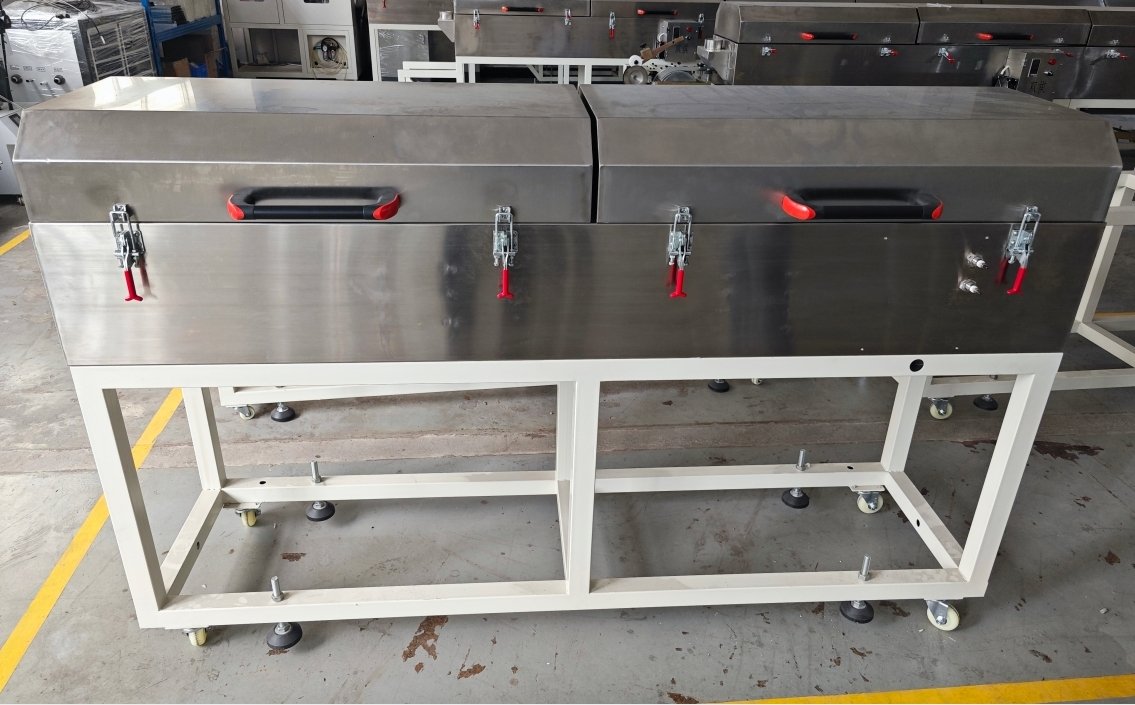

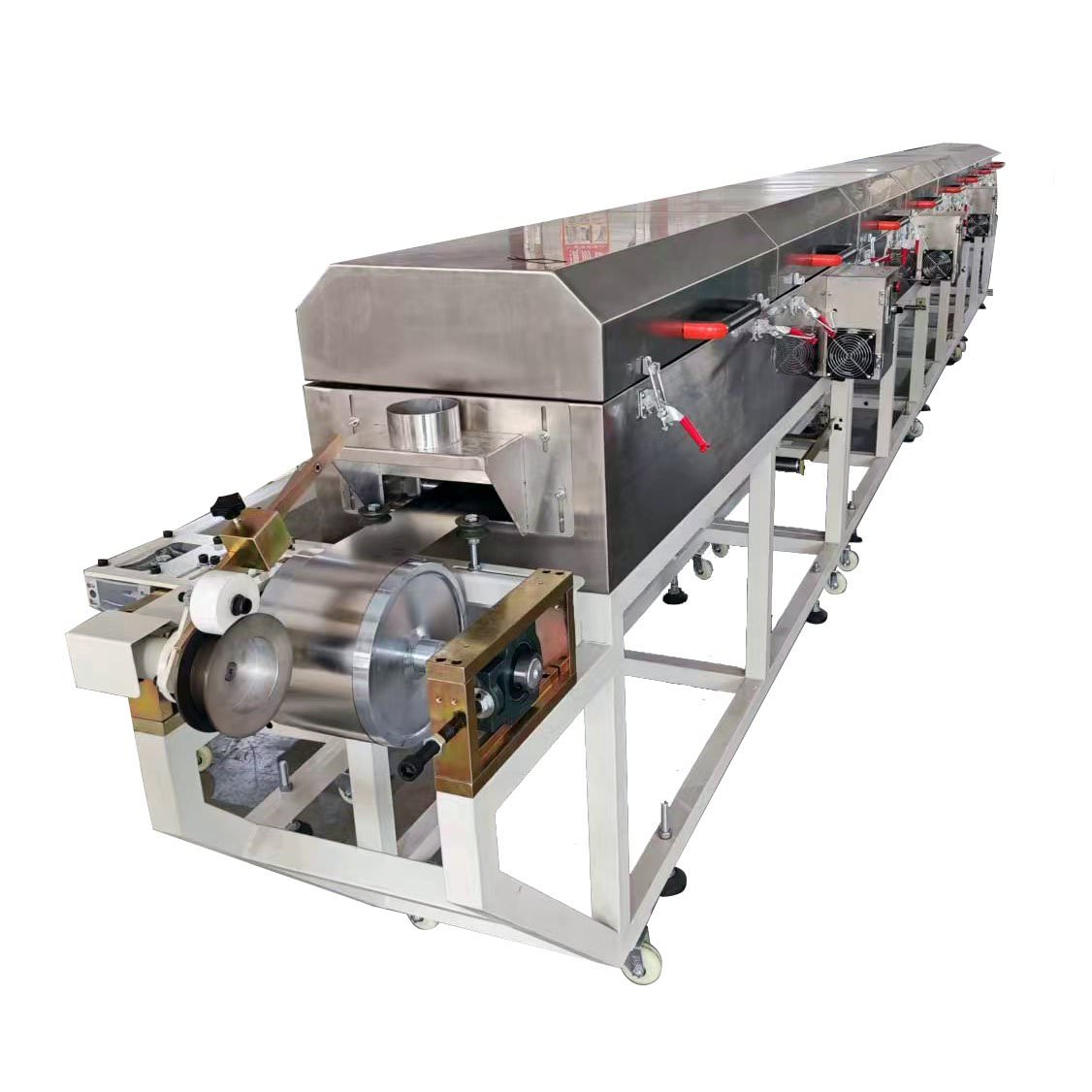

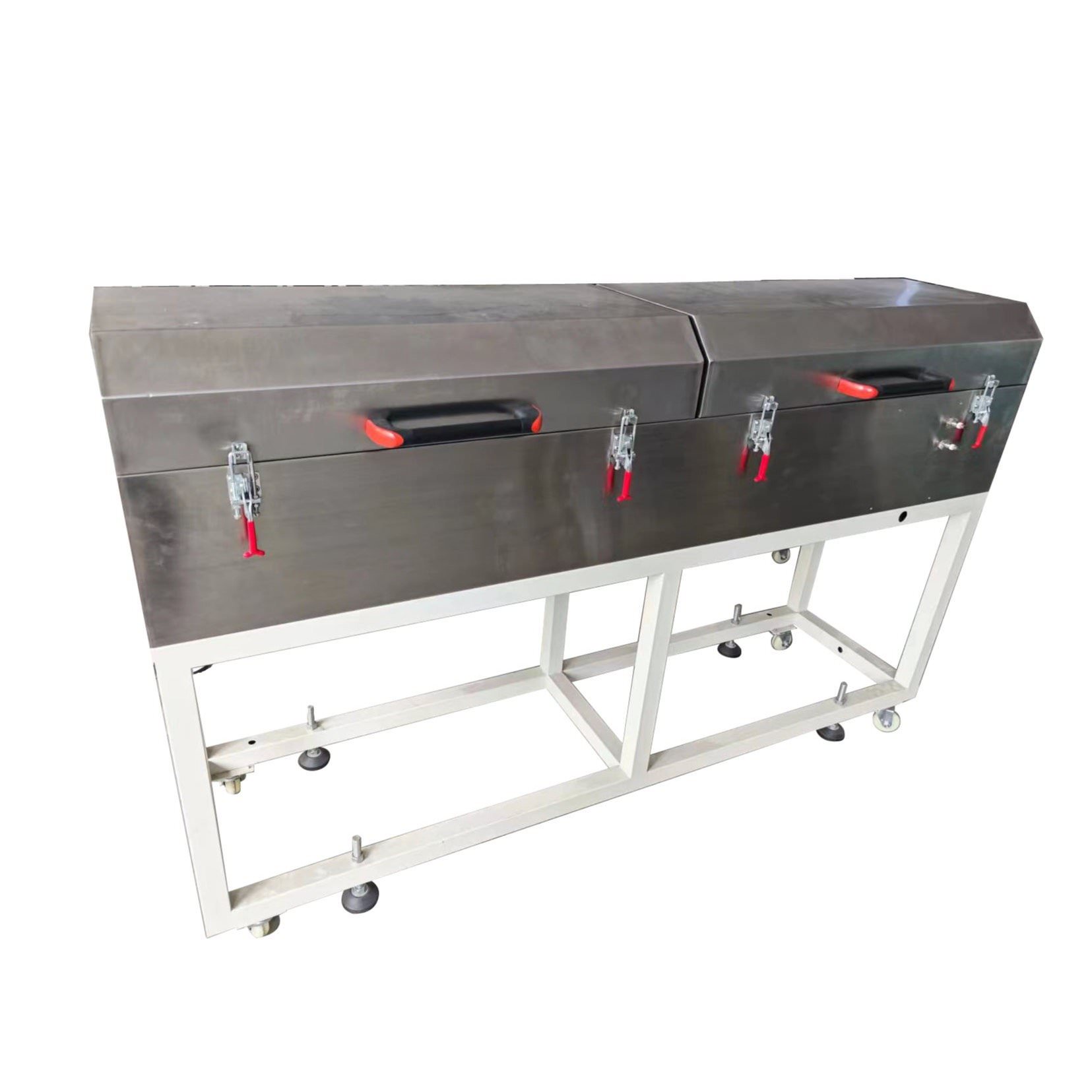

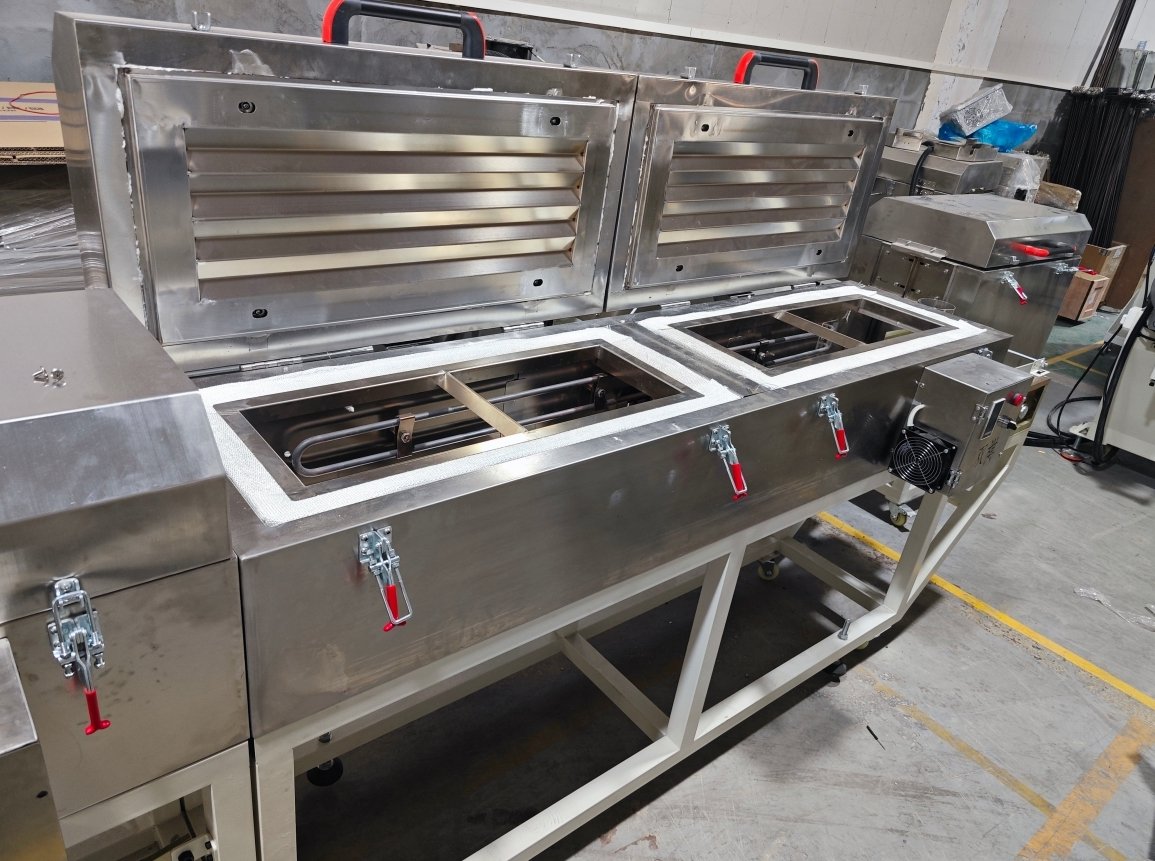

heating tunnel

The heating tunnel applies with double-cover on top which is more airtight and does not deform at high temperatures.

It is made of stainless steel 304 and is cleaner and more nice .

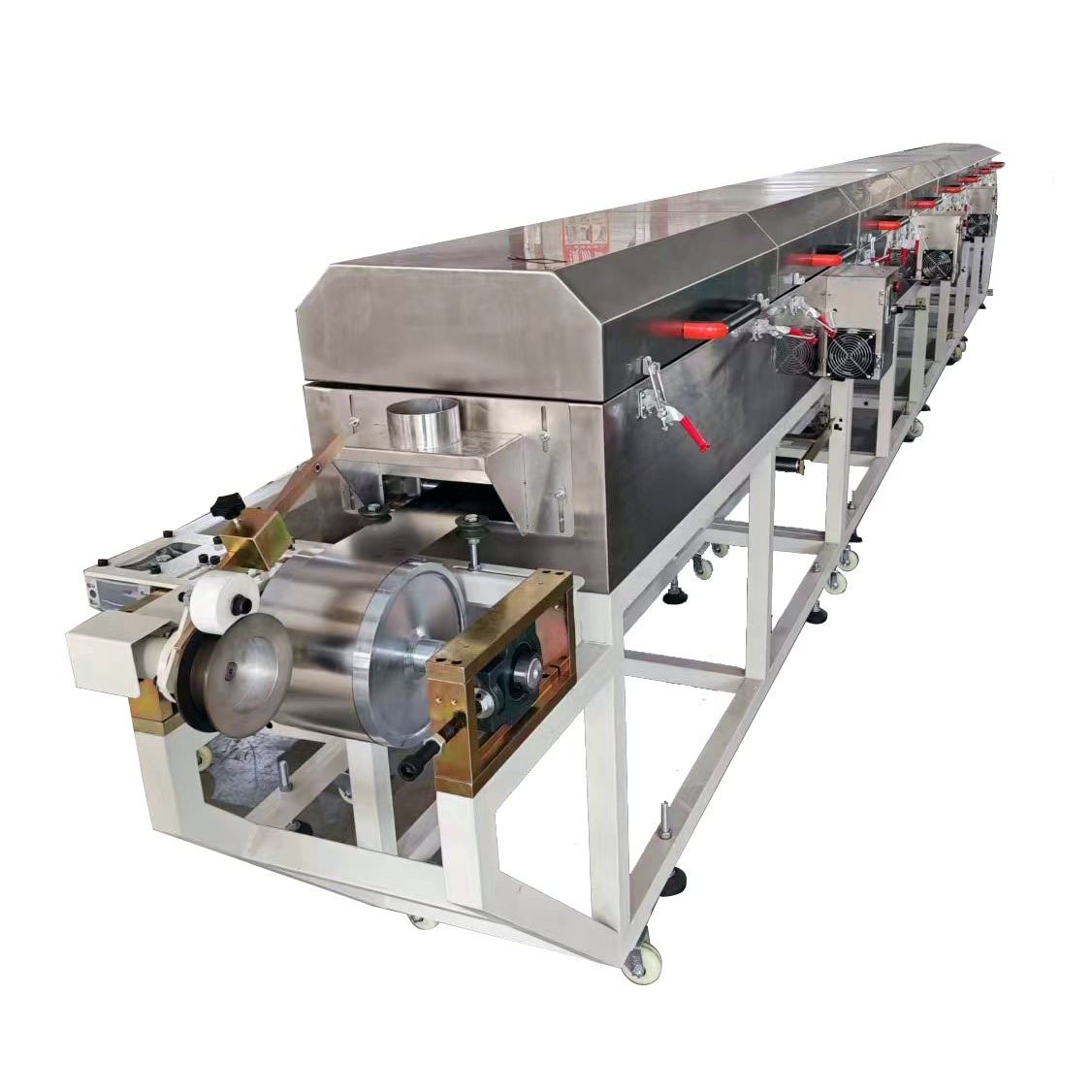

heating tunnel 2

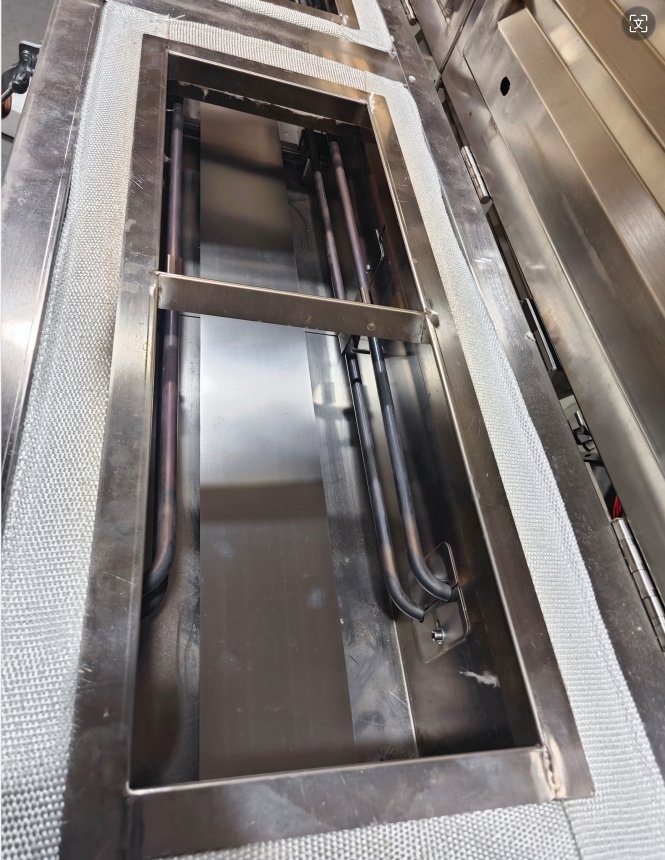

heat tubes

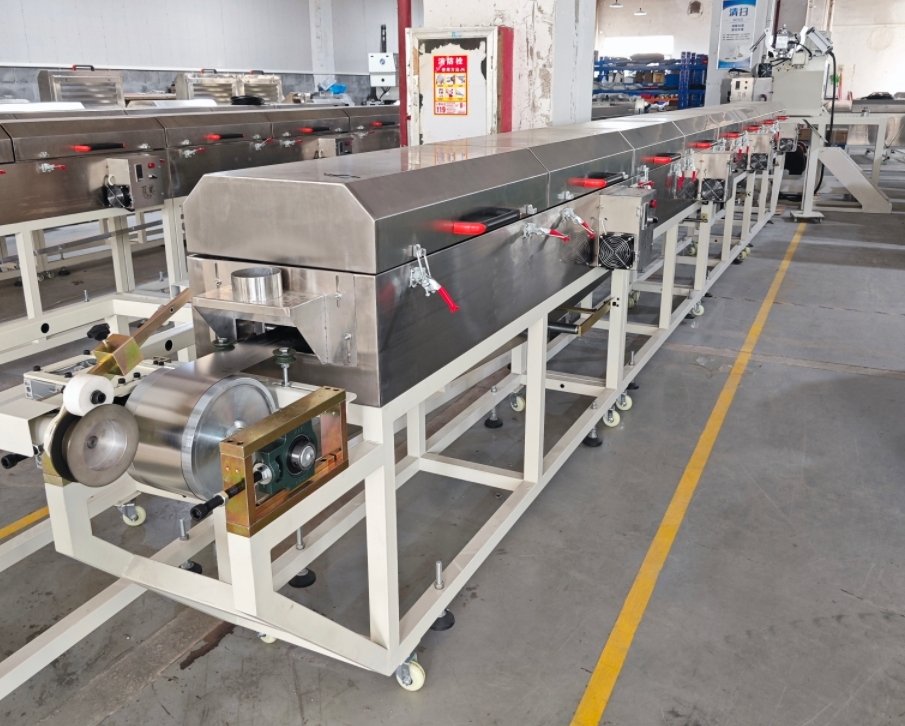

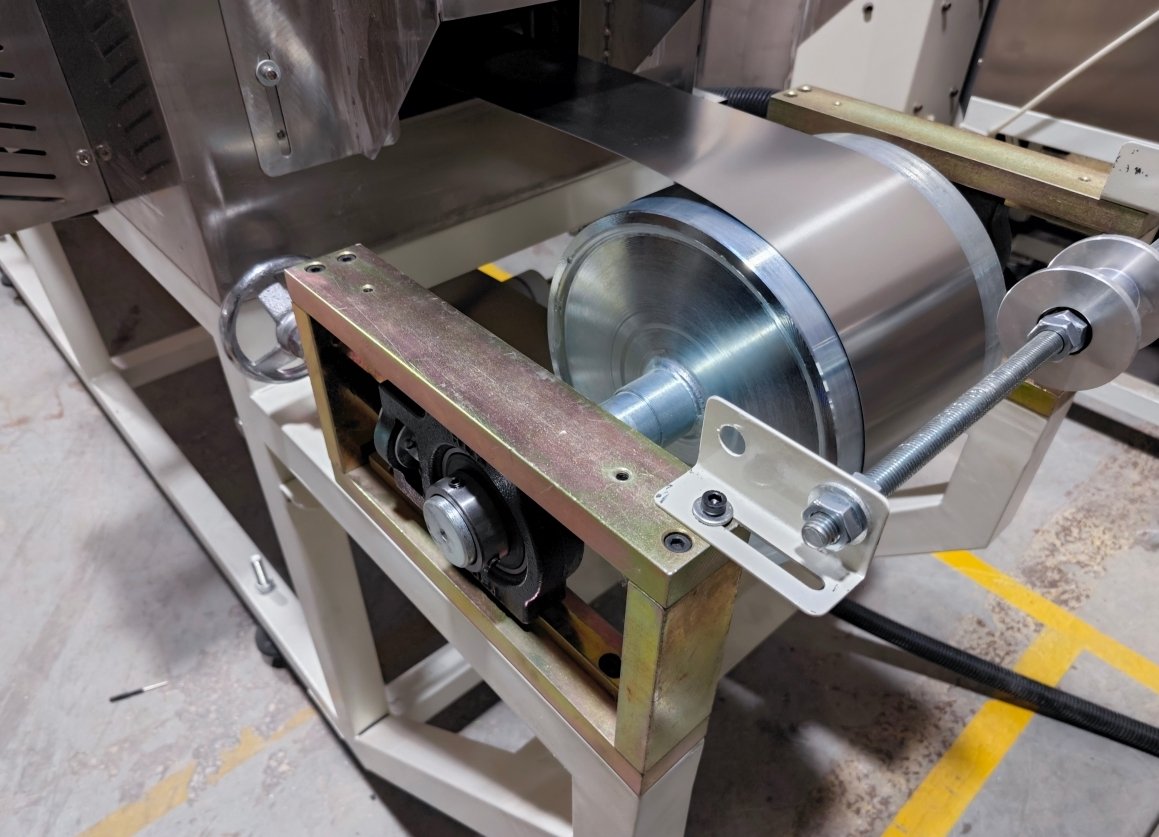

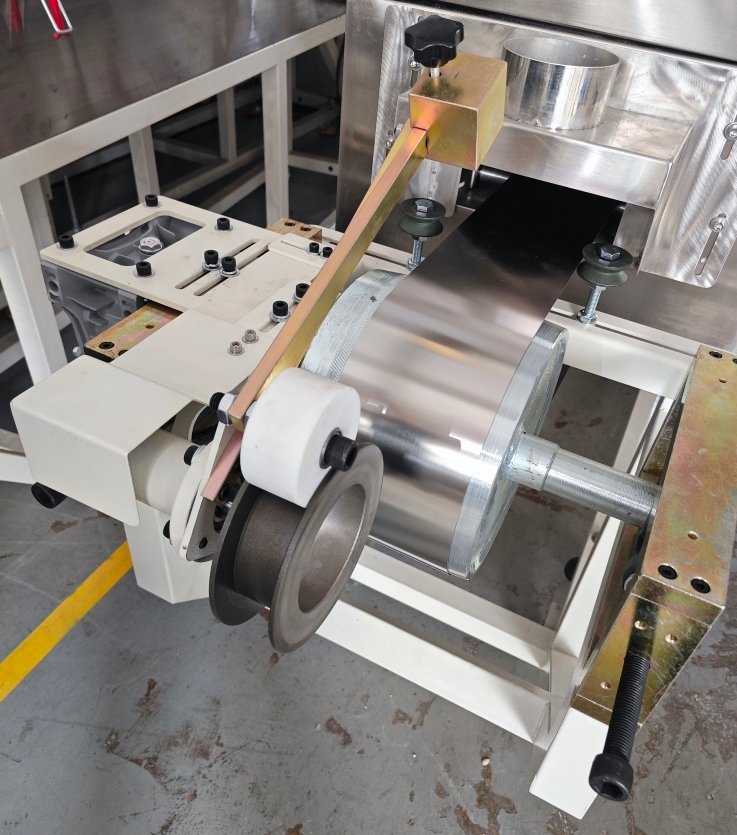

5,  Guiding device , There are guiding device at the end of the tunnel to ensure

that the product does not slip on the steel belt and is stable.

The direct connection of the motors solves the unstable conveying situation compared to the

old traditional chain drive method

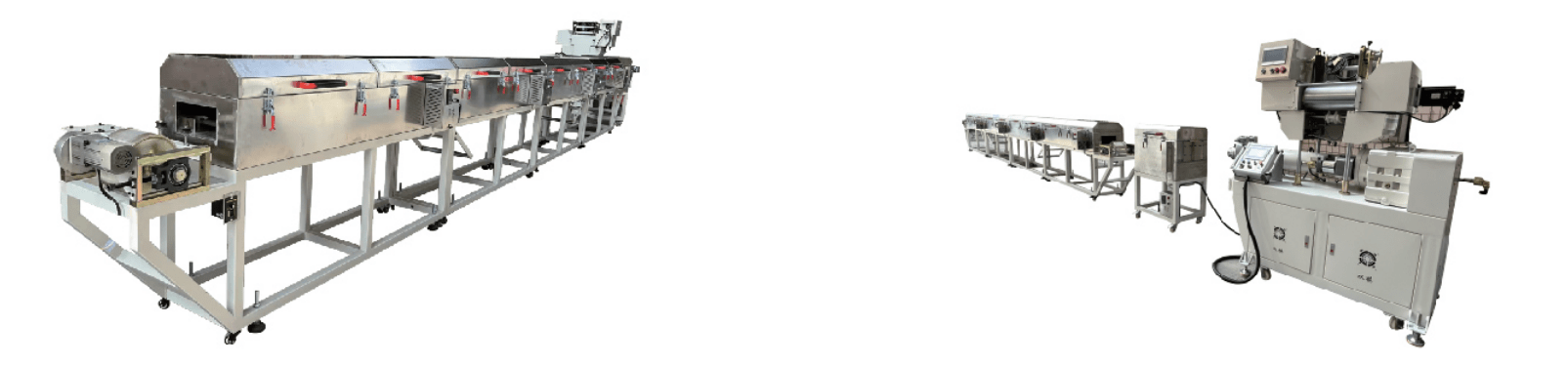

full extrusion line

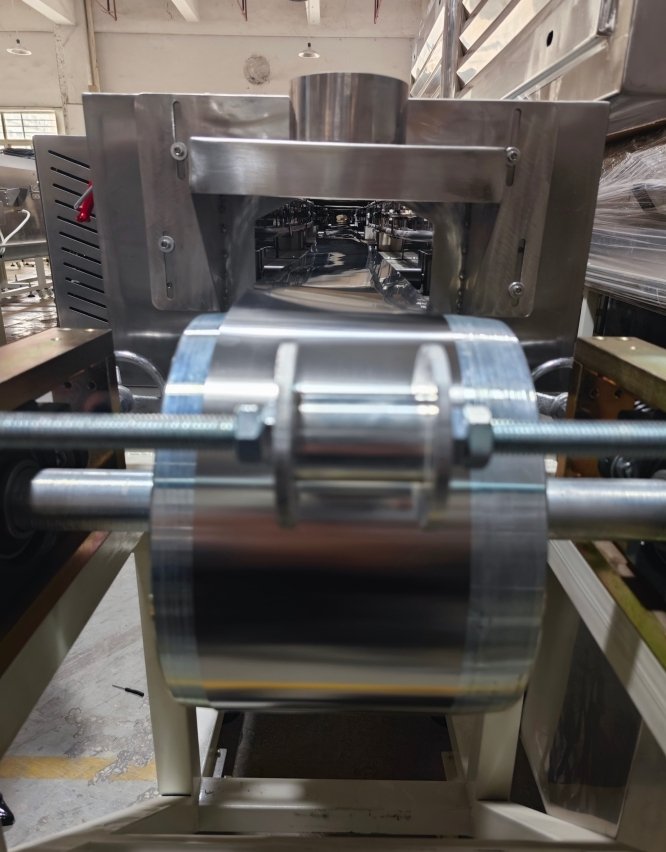

entry guide

outlet guide

There are pallets and supporting wheels in the drying tunnel to ensure smooth transportation of the steel belt.

transporting belts

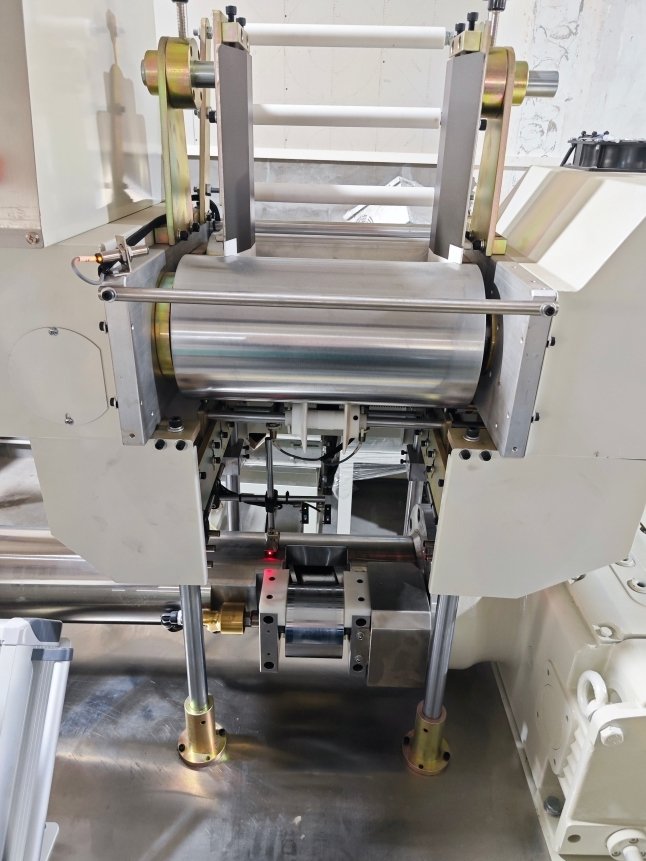

6,  Optional feeder device on top of  the extruder ,adopting roller type feeding,  the feeder speed are matching with

the host speed of  the extruder machine,With photoelectric switch to detect the lack of  silicone rubber material and feed in time ,

precise feeding  More accurate than manual feeding .

feeder machine



Front View

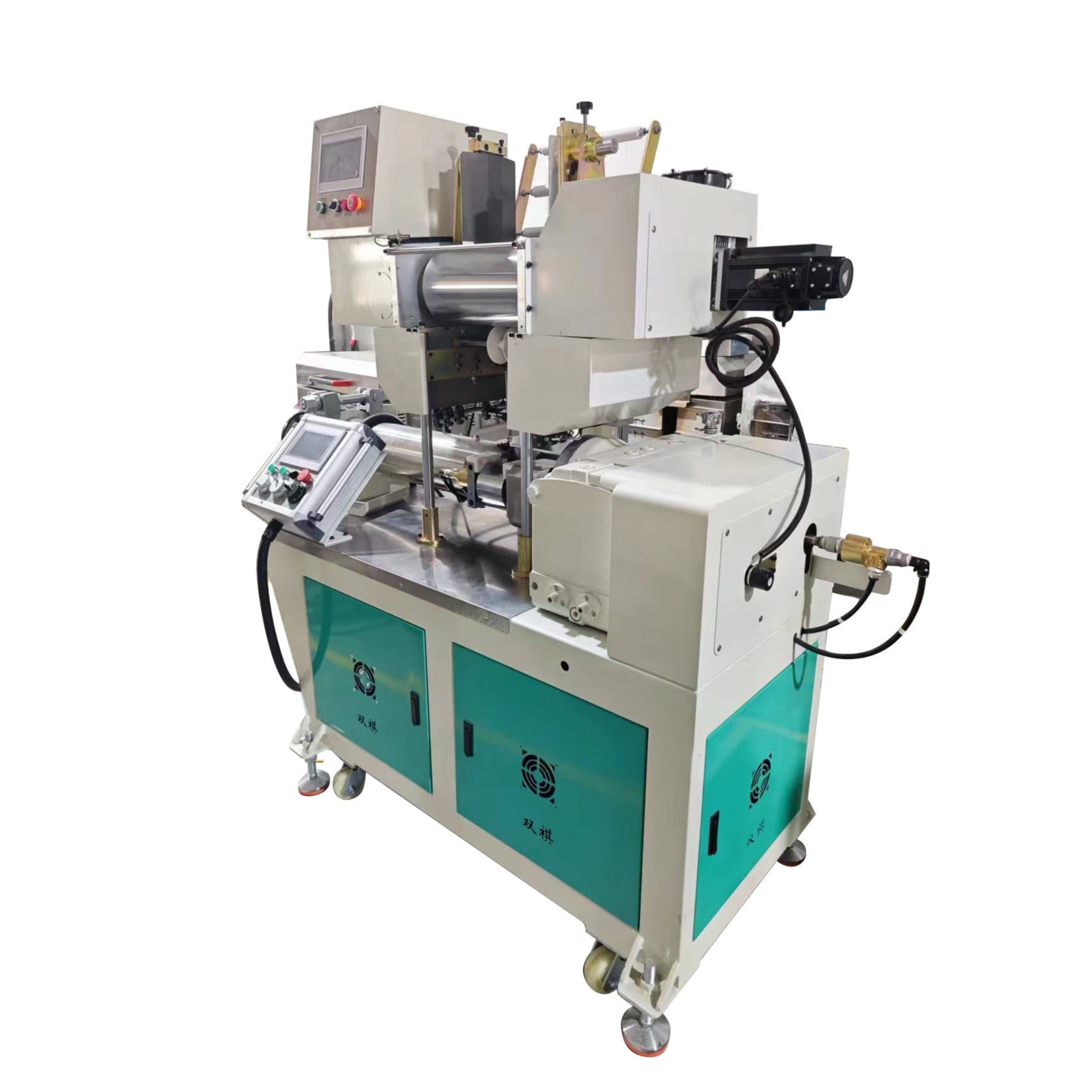

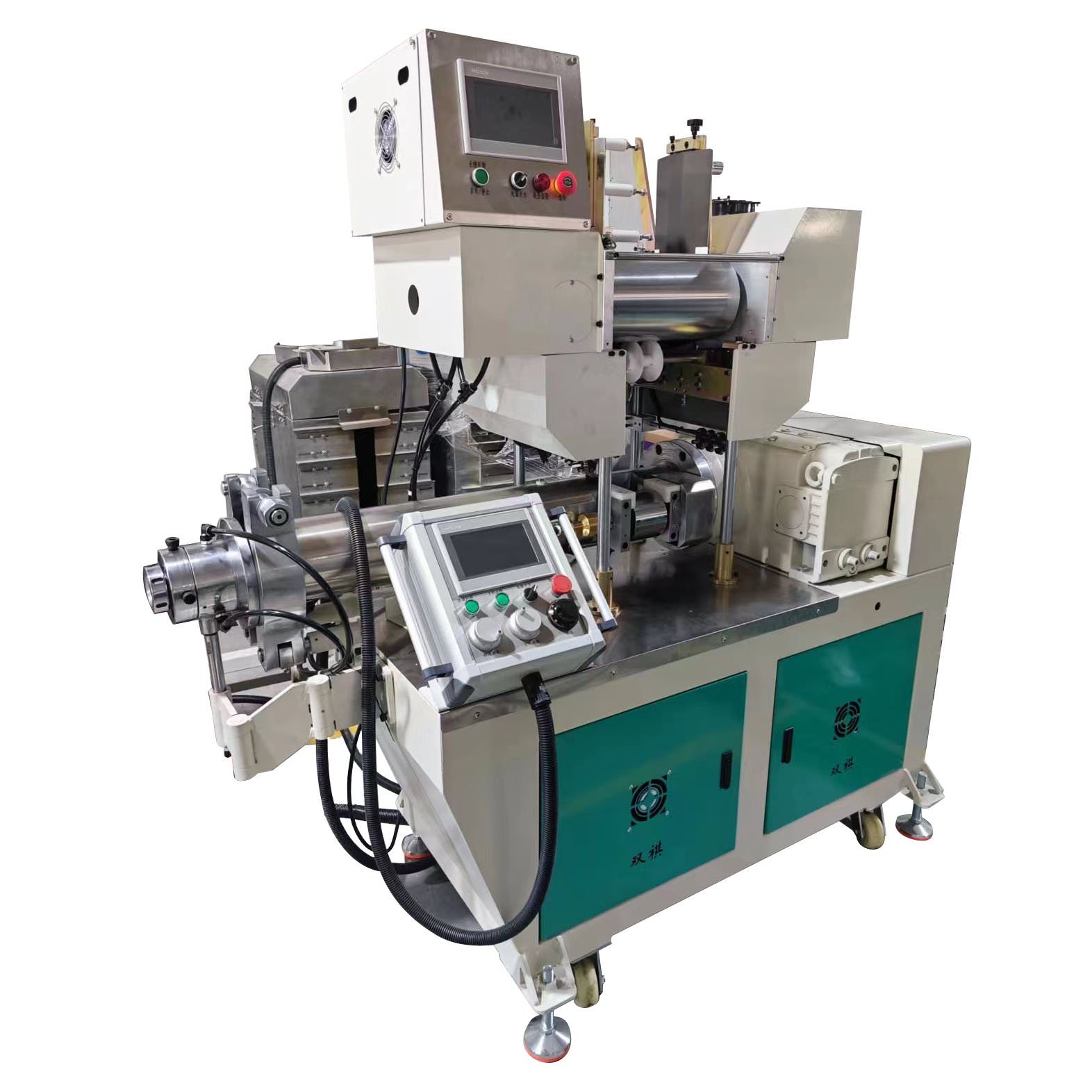

silicone extruders



Side View



silicone extrusion line

Side View

baking oven



Back View



baking oven

Over View



Silicone extrusion line



【Warranty 】

 As a silicone extrusion machine supplier , all the spare parts of the 055 machine will have one year of free maintainance

by changing the spare parts for free and free shipping of spare parts to overseas clients  starting from the issuing date of commercial invoice  after on line diagnosis .



【Packing】

1Set/Wooden case ,foam paddings will be put inside wooden case for safe overseas shipping
